Air cooled heat exchanger vs water cooled heat exchanger?

 This is a fundamental comparison in engineering. The choice between an Air-Cooled Heat Exchanger (ACHE) and a Water-Cooled Heat Exchanger (WCHE) is a critical design decision with significant implications for cost, operation, and the environment.

Here is a detailed, point-by-point comparison.

Core Concept

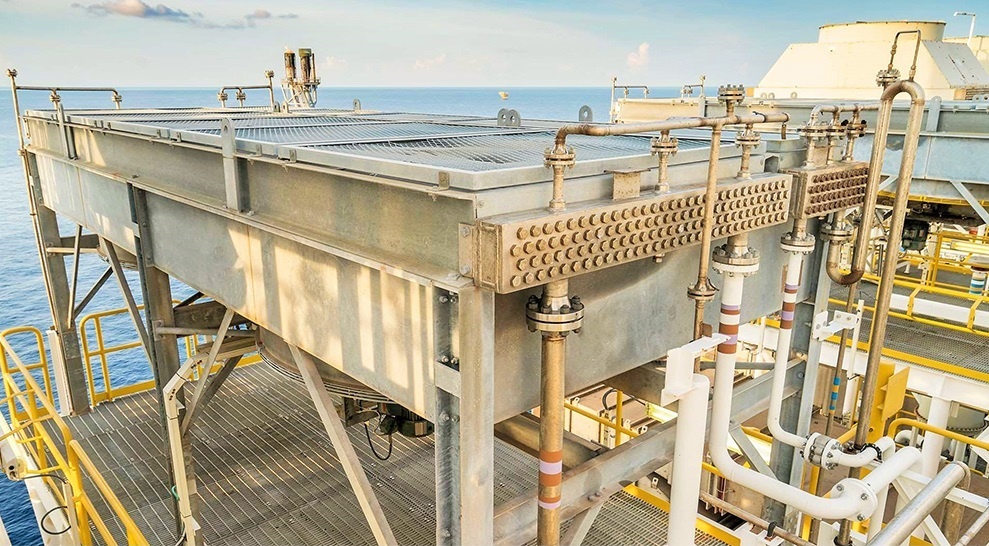

• Air-Cooled Heat Exchanger (ACHE): Uses ambient air as the cooling medium, driven by fans across finned tubes.
• Water-Cooled Heat Exchanger (WCHE): Uses water as the cooling medium, typically in a tube-and-shell design, and is part of a larger system that includes a cooling tower, pumps, and water treatment.

Head-to-Head Comparison Table

Parameter	Air-Cooled Heat Exchanger (ACHE)	Water-Cooled Heat Exchanger (WCHE)
Cooling Medium	Ambient Air	Water (circulated through a cooling tower)
System Components	Fin-fan tubes, fans, motors, structure.	Shell & Tube HX, cooling tower, water pumps, water treatment system, piping.

Initial Capital Cost	Lower for smaller systems or water-scarce areas.	Higher due to more components (tower, pumps, water treatment plant).
Operating Cost	Higher energy cost (fans are less efficient than pumps).	Lower energy cost (pumps are more efficient), but adds cost of water and chemicals.
Water Consumption	Very Low / Zero. Only used for occasional cleaning.	Very High. Continuous loss from evaporation, drift, and blowdown.
Environmental Impact	Large footprint, fan noise. No thermal/chemical water pollution.	Lower footprint, pump noise. Potential for thermal pollution and chemical discharge (blowdown).
Cooling Efficiency	Lower. Air is a poor heat transfer fluid. Limited by dry-bulb temperature.	Higher. Water is an excellent heat transfer fluid. Limited by wet-bulb temperature (which is lower than dry-bulb).
Approach Temperature	High approach (typically > 10-15°C above ambient dry-bulb)	Low approach (can reach 5°C or less above ambient wet-bulb)
Maintenance	Air-side fouling (dust, debris). Cleaning is simpler (air/water lancing). Mechanical maintenance on fans/gearboxes.	Water-side fouling (scale, algae, corrosion). More complex: cleaning tubes, water treatment, tower maintenance.

Space Requirements (Plot Plan)	Very Large. Requires significant area at grade level for air flow.	More Compact. Shell & tube HX can be placed in pipe racks; cooling tower footprint is smaller than equivalent ACHE.
Reliability & Vulnerability	High. Less auxiliary systems. Vulnerable to air temperature spikes and airborne debris.	Lower. More components (pumps, tower) that can fail. Vulnerable to freezing in cold climates.
Process Temperature Control	Less precise due to diurnal and seasonal air temperature swings.	More precise and stable, as water temperature is easier to control.
Safety	Safer for flammable/ hazardous fluids. A leak is directly to atmosphere.	Riskier for flammables. A leak could cause a dangerous water-ingress or steam explosion scenario.
Climate Dependence	Performance drops significantly in hot summer months.	Performance is more consistent, though it also drops in hot, humid conditions.

When to Choose Which?

Air-Cooled Heat Exchanger (ACHE)

• Pros:
  • Conserves water.
  • Simpler system, easier maintenance.
  • Lower risk for hazardous fluids.
  • No water pollution.
  • No freezing issues in cold weather.

• Cons:
  • Higher energy consumption.
  • Larger plot space requirement.
  • Limited by high ambient air temperature.
  • Higher noise levels from fans.
  • Less precise temperature control.

Water-Cooled Heat Exchanger (WCHE)

• Pros:
  • Superior cooling efficiency.
  • Lower energy consumption.
  • More compact heat exchanger footprint.
  • Better and more stable temperature control.
  • Generally lower initial cost for large capacities (in water-rich areas).
• Cons:
  • High water consumption and cost.
  • Complex system with more components to maintain.
  • High cost of water treatment chemicals.
  • Risk of water-side fouling and corrosion.
  • Environmental concerns with thermal and chemical discharge.
