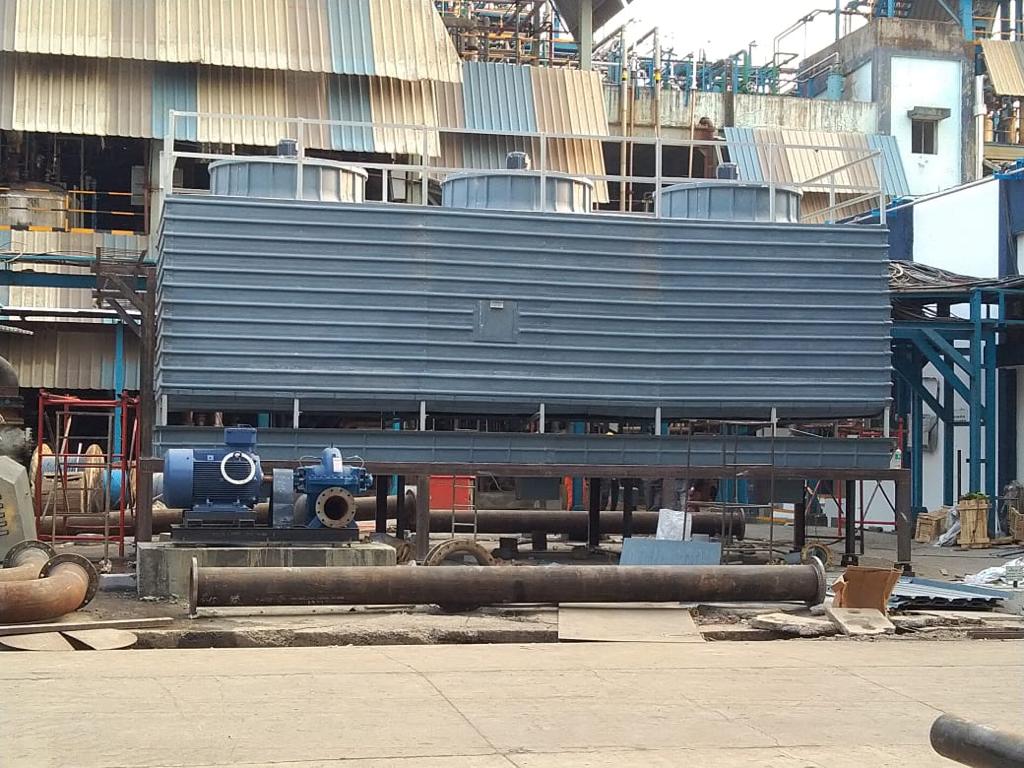

A cooling tower is a heat rejection device that removes waste heat from a water stream and releases it into the atmosphere through cooling. It is commonly used in industries, power plants, and HVAC systems to maintain optimal operating temperatures. Here’s how it works:
Working Principle of a Cooling Tower
- Hot Water Inlet
- Warm water from industrial processes or HVAC systems enters the cooling tower at the top through nozzles or spray distribution systems.
- Water Distribution
- The hot water is evenly distributed over fill media (also called packing), which increases the surface area for better heat transfer.
- Air Flow
- Air is drawn into the tower either by natural draft (due to density differences) or mechanical draft (using fans).
- In forced-draft towers, fans push air into the tower, while in induced-draft towers, fans pull air out.
- Evaporative Cooling
- As water flows down the fill media, it comes into contact with the upward-moving air.
- A small portion of the water evaporates, absorbing latent heat from the remaining water and cooling it down.
- Heat Exchange
- The air absorbs heat from the water and becomes warmer and more humid.
- The cooled water collects in the basin at the bottom and is recirculated back into the system.
- Exhaust of Warm Air
- The warm, moist air is expelled from the top of the tower, while the cooled water is pumped back for reuse.
Types of Cooling Towers
- Natural Draft Cooling Tower (uses convection for airflow)
- Mechanical Draft Cooling Tower (uses fans for airflow)
- Forced Draft (fan at the base)
- Induced Draft (fan at the top)
- Crossflow & Counterflow (direction of water vs. air movement)
- Closed-Circuit Cooling Tower (keeps process fluid separate from cooling water)
Key Advantages
- Energy-efficient cooling method
- Reduces water consumption through recirculation
Extends equipment life by maintaining optimal temperatures
