Effect of Wet bulb temperature in Dry cooling tower performance The direct effect of Wet Bulb Temperature on a pure Dry Cooling Tower is essentially ZERO. However, it has a major indirect effect that becomes critical for system design and comparison. Let’s break this down. The Direct Effect: Why It Doesn’t...

Effect of Dry bulb temperature in Dry cooling tower performance The Dry Bulb Temperature is the single most critical environmental factor affecting the performance of a dry cooling tower. In simple terms: As the Dry Bulb Temperature increases, the performance and efficiency of a dry cooling tower decrease significantly....

In essence, the choice is between investing more money upfront in a robust system (pads) or investing more ongoing labour and risk into a cheaper system (misting). For most critical industrial and HVAC applications, cellulose pads are the more robust and recommended choice.

Choose Cellulose Pads when: Choose Misting Nozzles when:

the reason for using a cellulose pad in a dry cooling tower is to create a highly efficient and water-conscious hybrid system. This makes the “dry cooler with cellulose pad” one of the most popular and effective designs for sustainable cooling in water-scarce regions.

Comparison: Pad vs. Misting Nozzles Feature Cellulose Pad High-Pressure Misting Nozzles Efficiency Very High High Water Drift Very Low Can be high if not properly designed Risk of Clogging Lower (large passages) Higher (very small orifice) Coil Fouling Low risk (air is filtered by pad) Higher risk (minerals in water can deposit on coil) Maintenance...

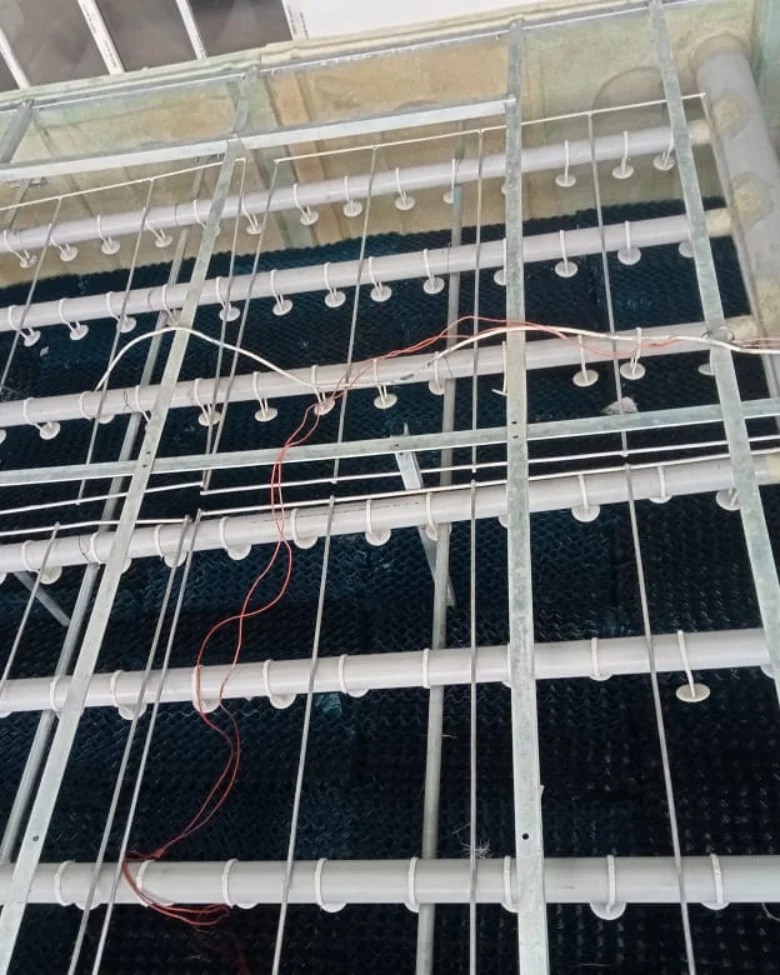

Why Use a Cellulose Pad Specifically? (Advantages over other methods like spray nozzles) Cellulose pads (often called evaporative cooling pads) are the industry standard for this purpose due to their unique properties:

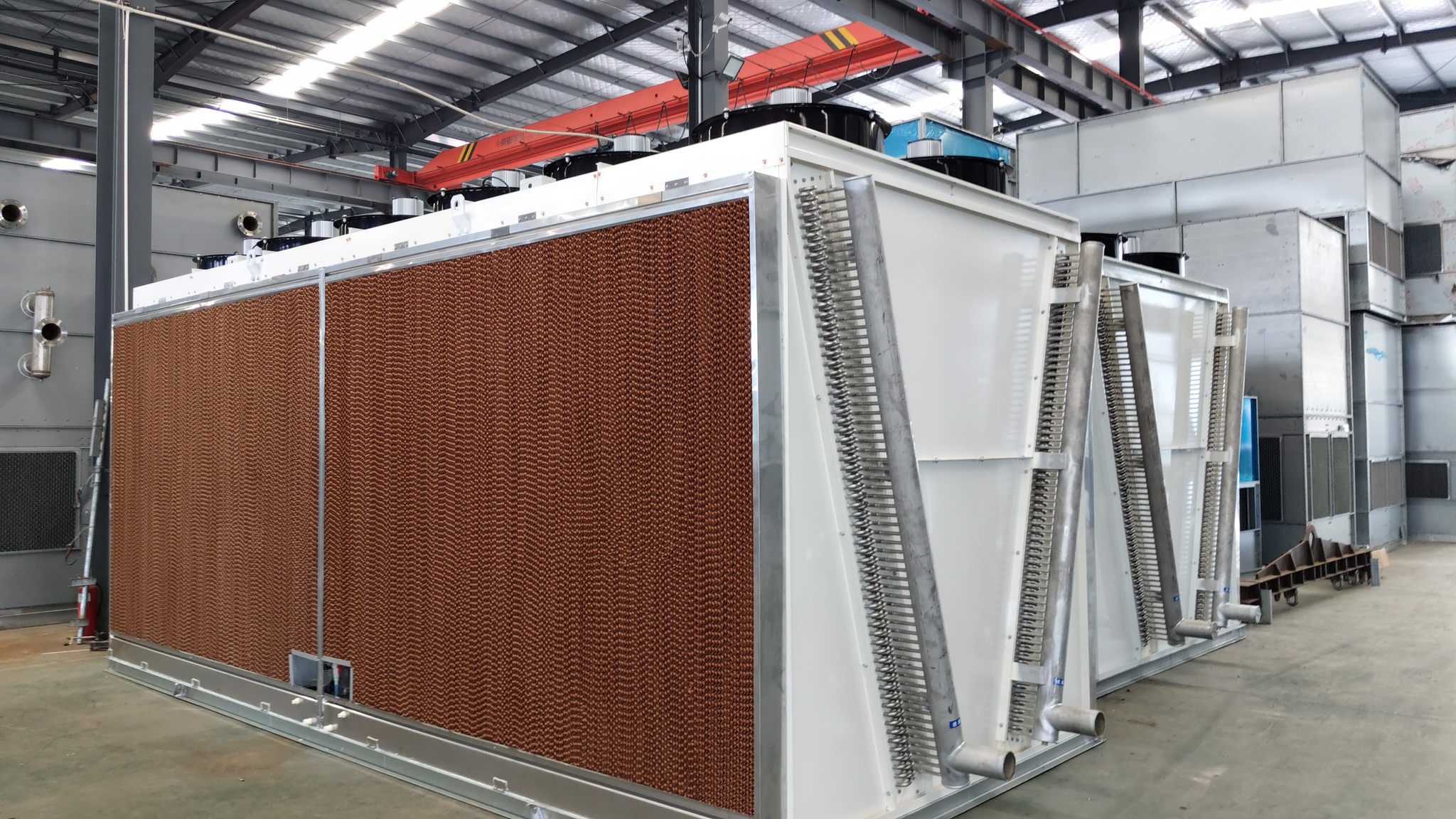

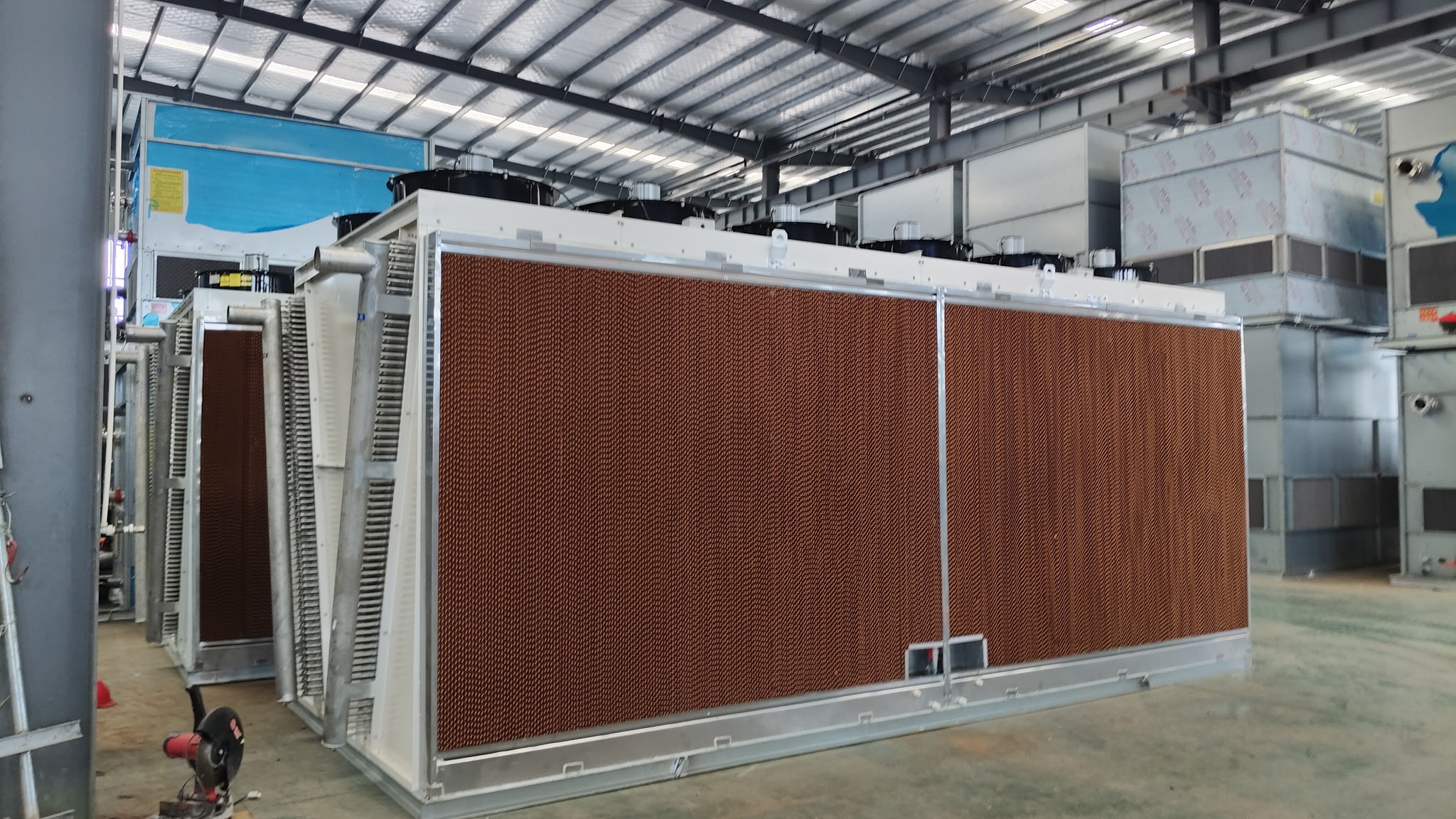

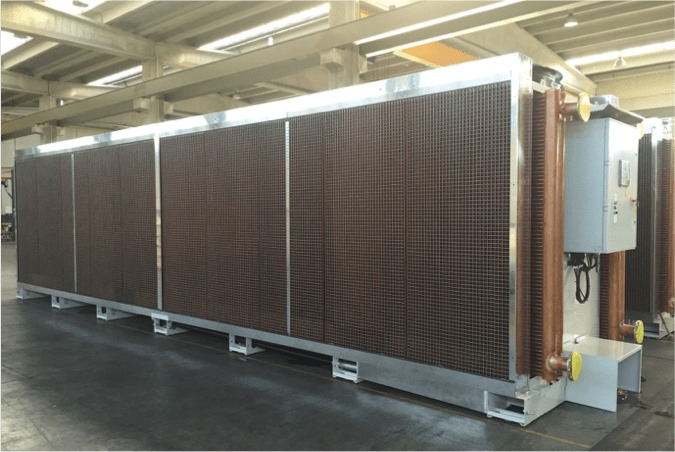

The reason for using a cellulose pad in a dry cooling tower is to create an efficient and controlled adiabatic pre-cooling system, transforming a standard dry cooler into a more powerful and efficient adiabatic hybrid cooler during hot weather. The cellulose pad is not part of the dry circuit itself; it’s an add-on component that operates...

Comparison with Other Coolers Feature Pure Dry Cooler Adiabatic Hybrid Cooler Wet Cooling Tower Water Use Zero Low (Intermittent) Very High (Continuous) Energy Use Highest (on hot days) Lower Lowest Cooling Efficiency Low (on hot days) High & Stable Highest & Stable Plume None None Visible Plume Maintenance Low Medium High

Key Components of the System This hybrid system includes all the parts of a standard dry cooler, plus the adiabatic section:

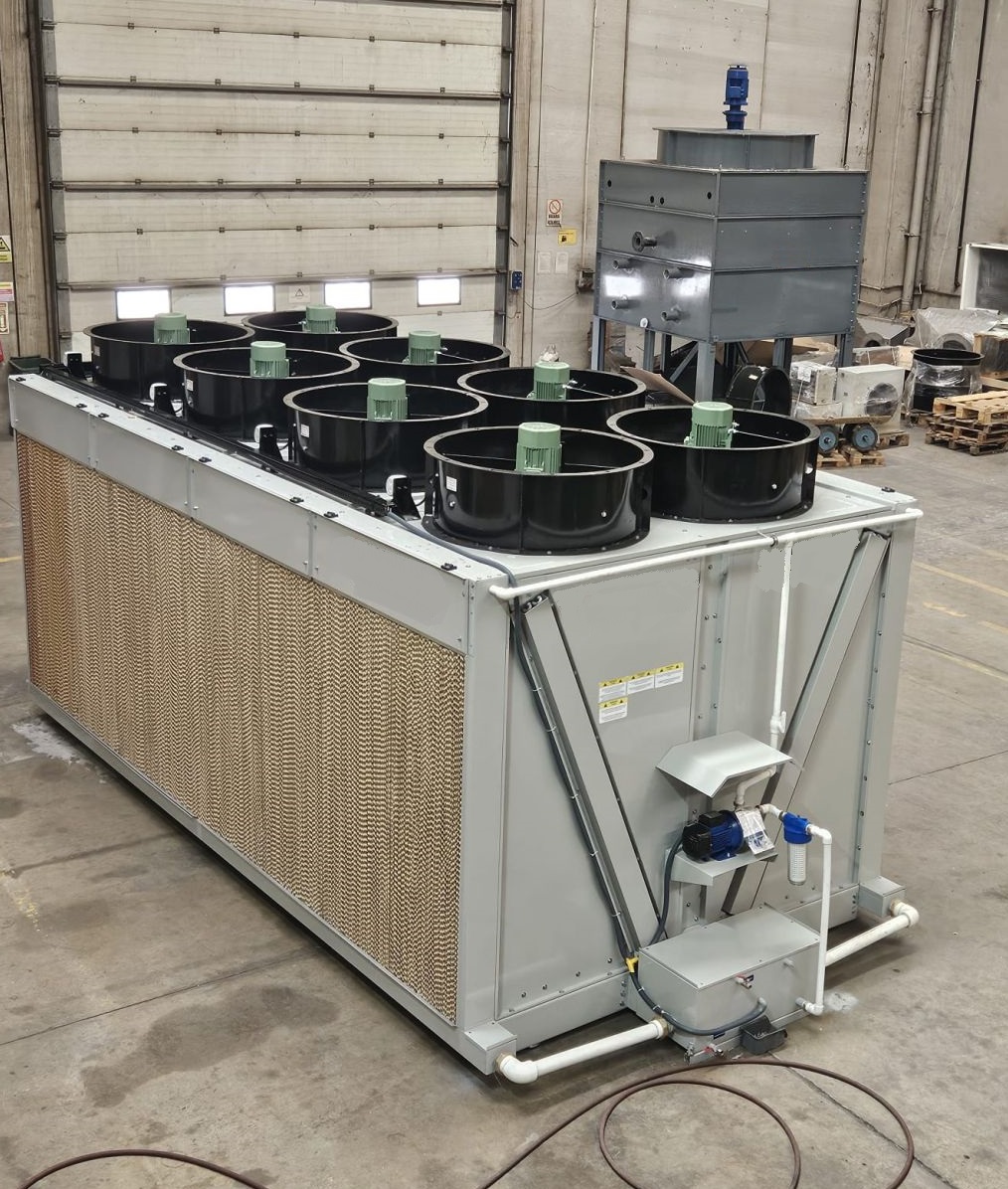

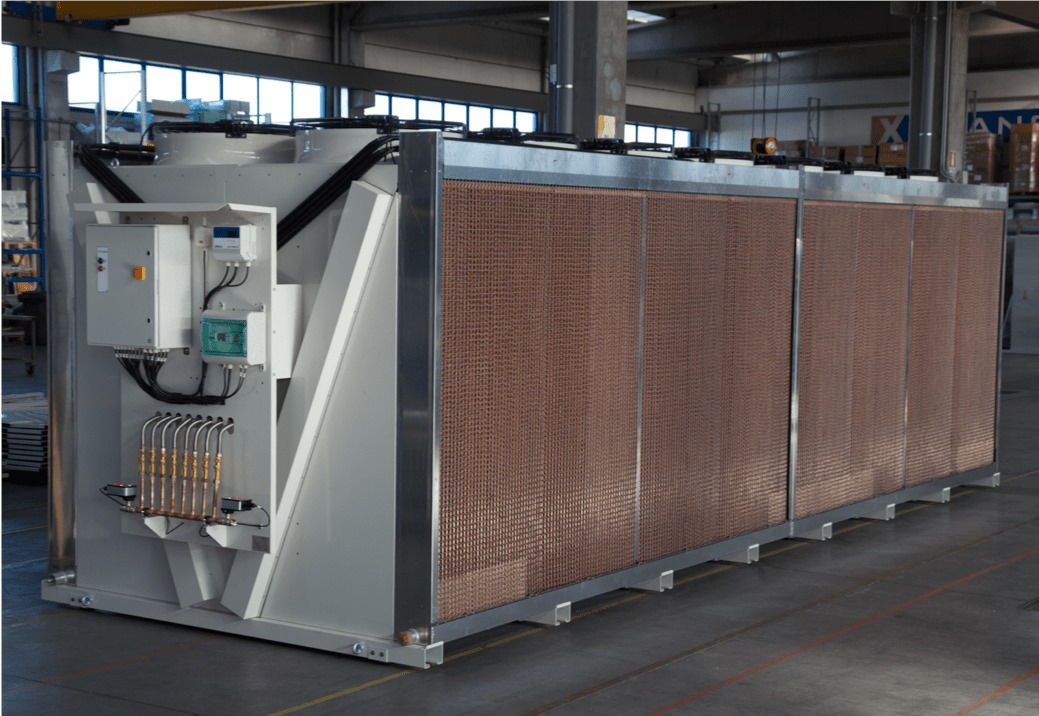

Dry cooling tower with Adiabatic fluid cooler A Dry Cooling Tower with an Adiabatic Fluid Cooler (often called an Adiabatic Hybrid Cooler) is a system that combines the water-saving benefits of a dry cooler with the high efficiency of evaporative cooling, but only when needed. It’s designed to get the “best of both...

Material Selection Factors Factor Ideal Material Trade-off Thermal Conductivity Copper > Aluminum > Steel Copper is expensive and less strong. Corrosion Resistance Stainless Steel > Copper > Aluminum > Carbon Steel Stainless Steel has lower thermal conductivity and higher cost. Mechanical Strength Steel > Stainless Steel >...

Common Material Combinations The most efficient and cost-effective combinations leverage the strength of one material and the thermal conductivity of another. Common Material Combinations The most efficient and cost-effective combinations leverage the strength of one material and the thermal conductivity of another. Tube Material Fin Material...

Material of Construction of cooling coil in Dry cooling tower Their Common Materials 1. Tubes (The Primary Pressure Boundary) The tubes carry the hot process fluid and must withstand its pressure and temperature. 2. Fins (The Extended Surface for Heat Transfer) The fins are attached to the outside of the tubes to dramatically increase the...

Advantages and Challenges of Using a Coil Advantages (Why it’s used): Challenges (Limitations of the Coil):

Types of Coils in Dry Cooling Towers

How the Coil Works in the System: A Step-by-Step Process

Detailed Functions and Design Characteristics: 1. Creates a Sealed, Closed Loop: 2. Provides Maximum Surface Area for Heat Transfer: 3. Acts as the Physical Barrier: 4. Dictates the Tower’s Efficiency and Capacity:

Use of Heat exchanger coil in Dry cooling tower The heat exchanger coil is the absolute core component of a dry cooling tower, and its use is fundamental to the tower’s entire operation. In simple terms, the use of the heat exchanger coil in a dry cooling tower is to transfer heat from the hot internal […]

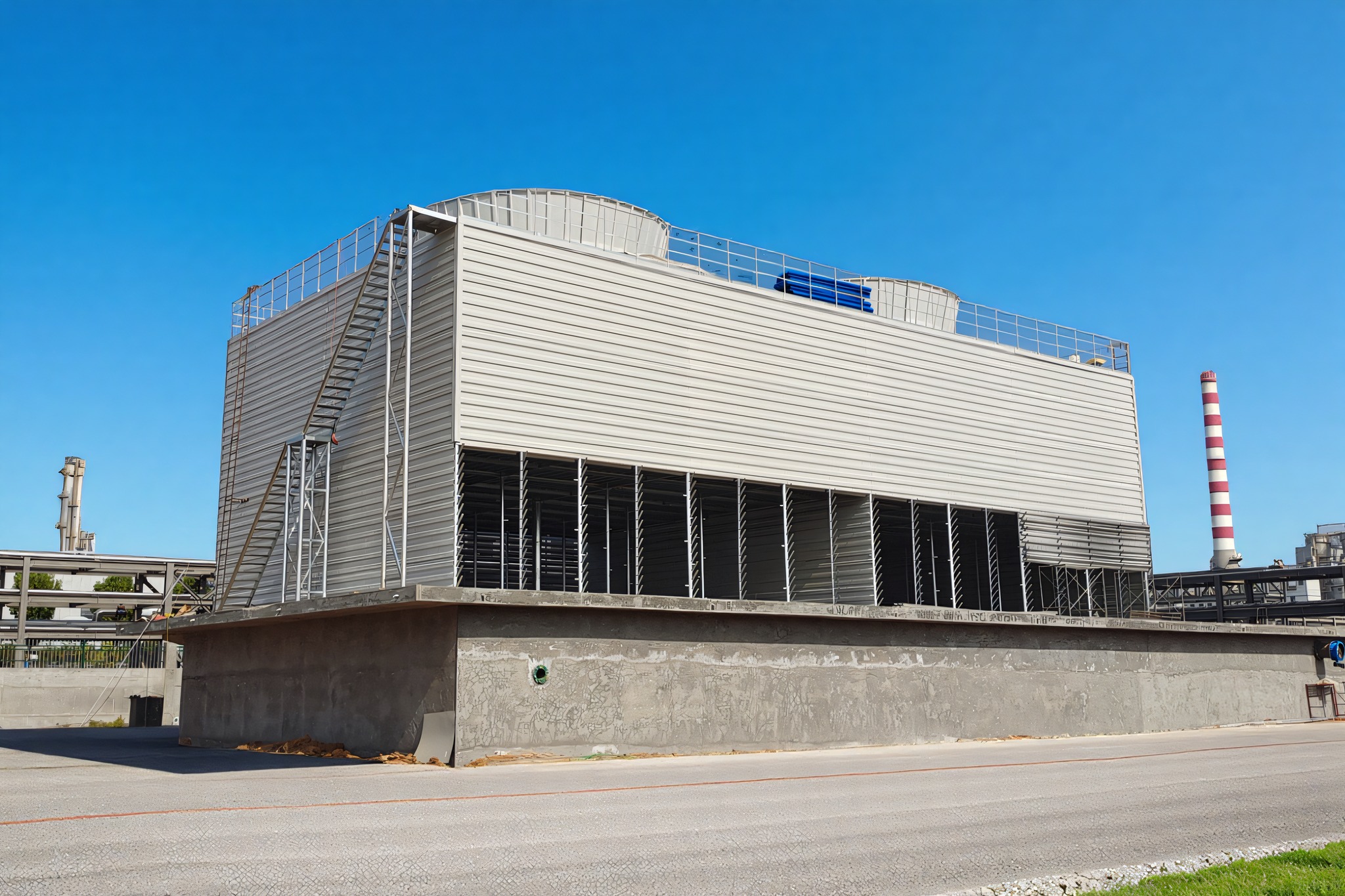

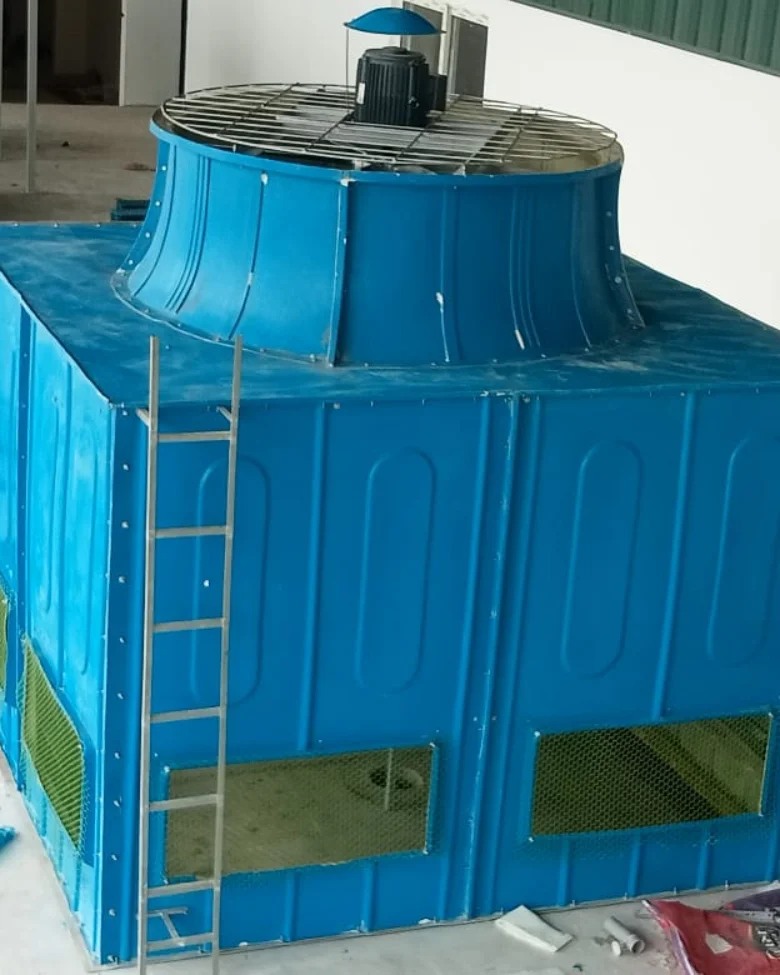

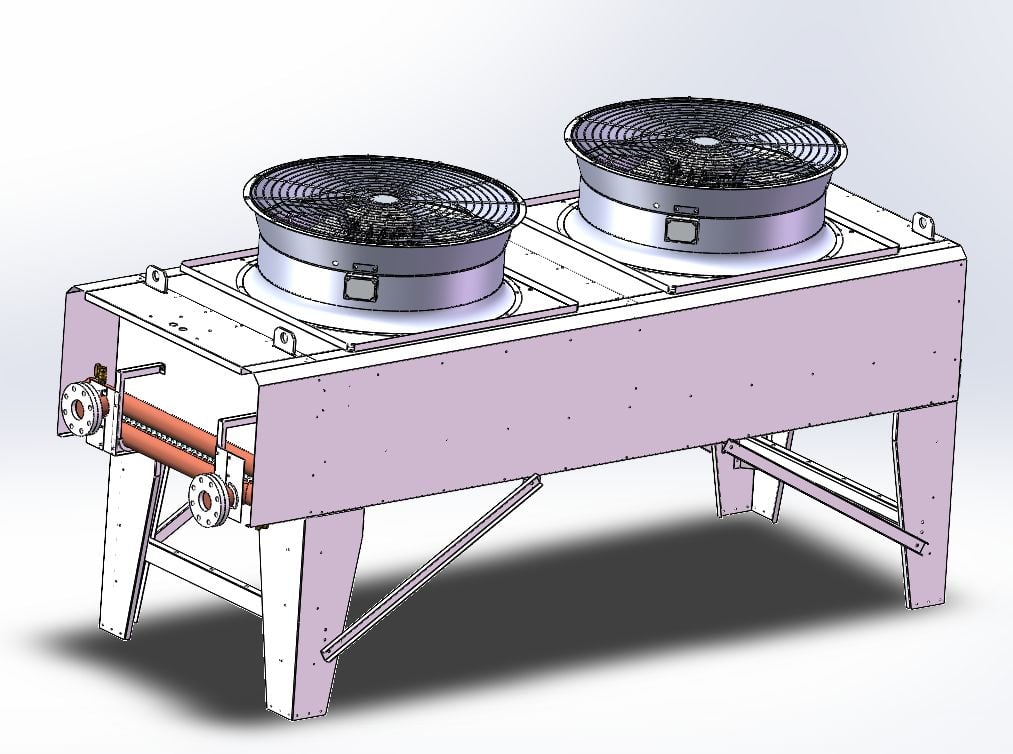

Induced Draft Dry Cooling Tower

Forced Draft Dry Cooling Tower

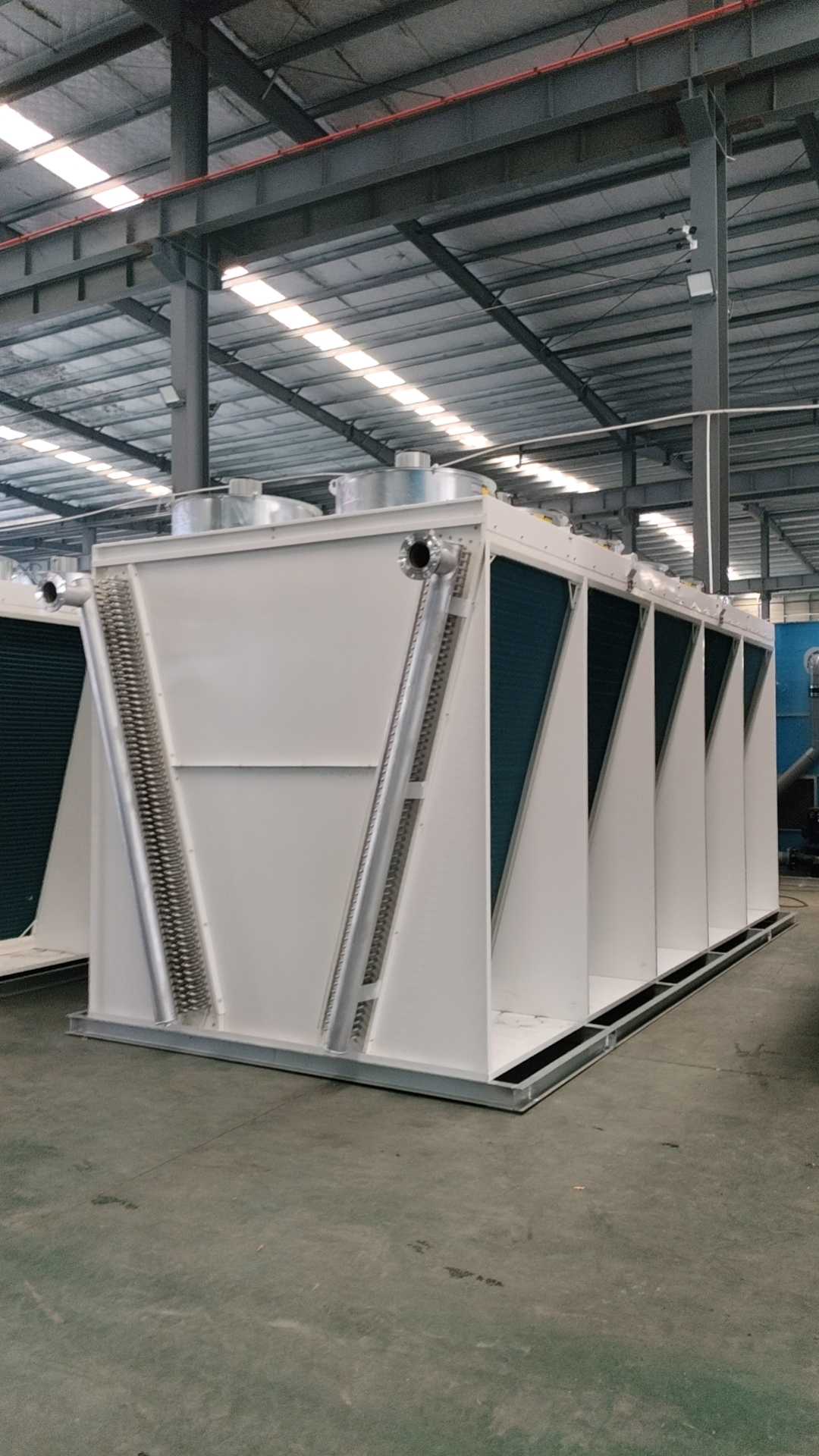

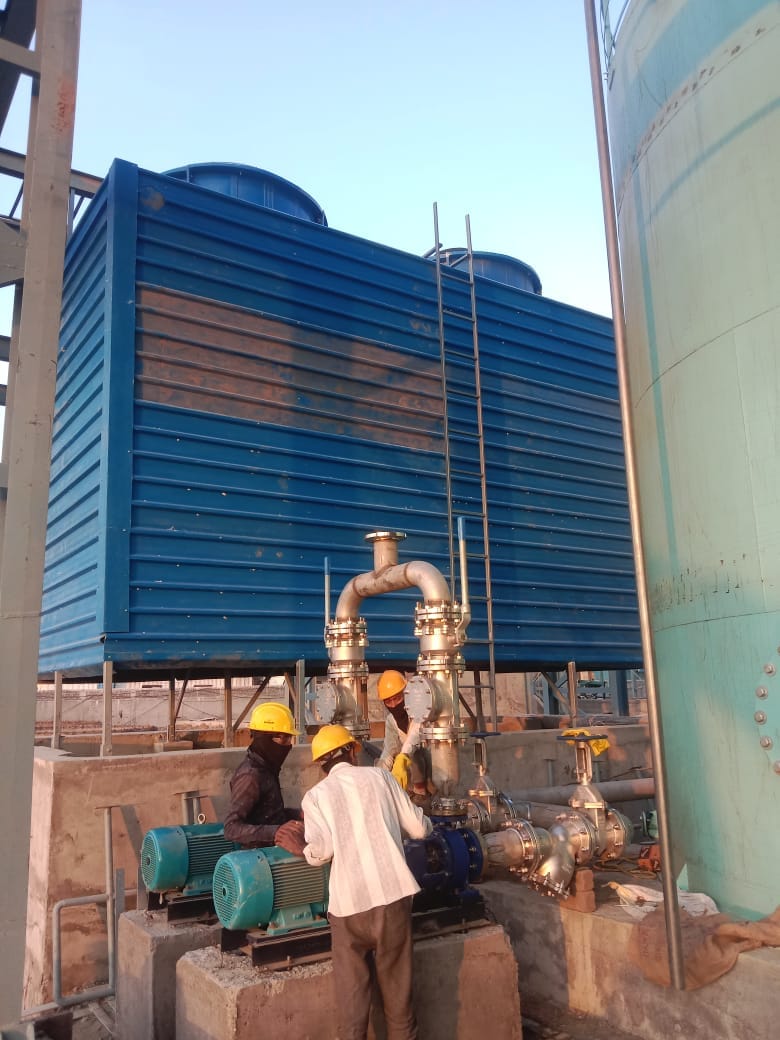

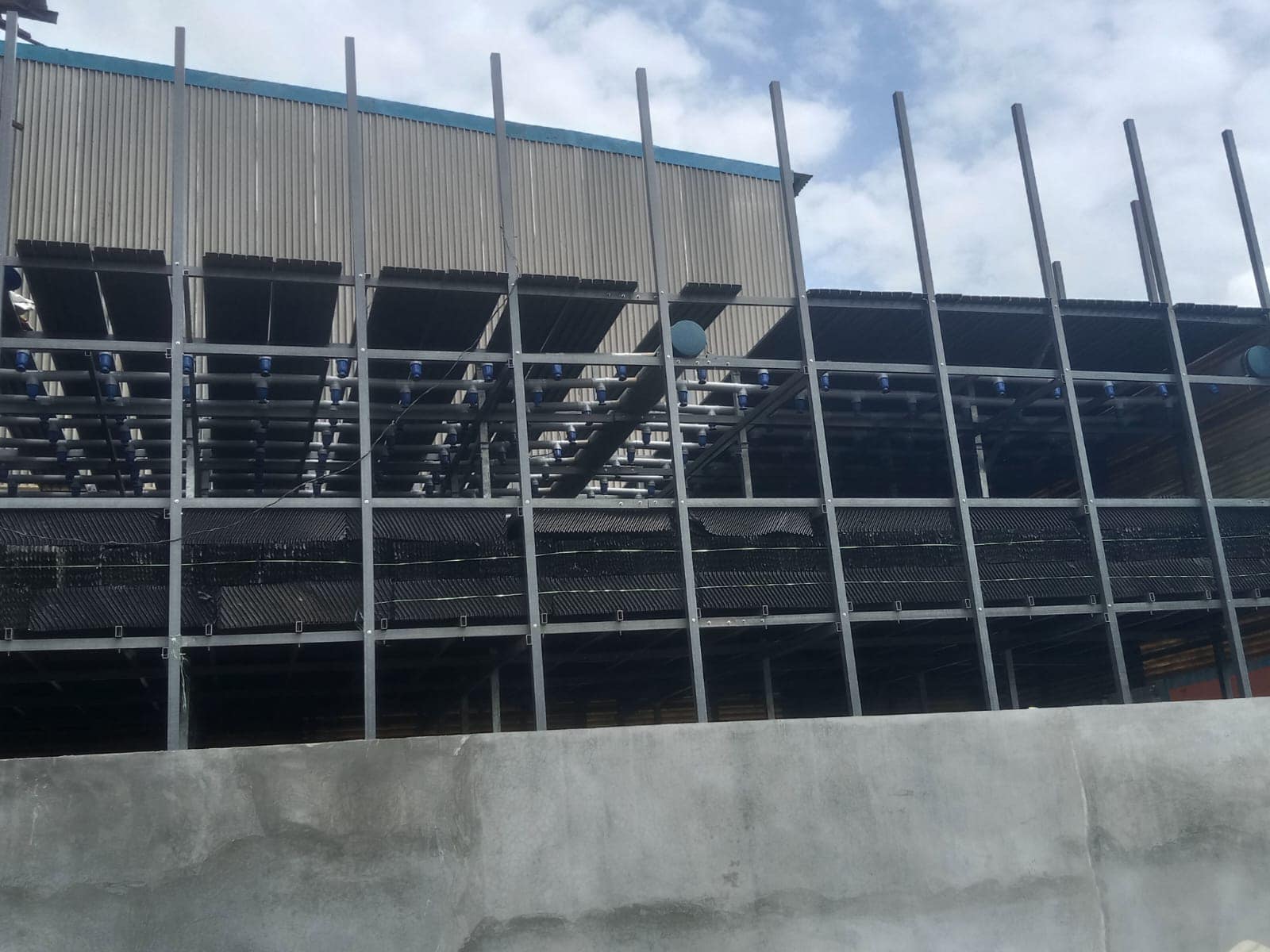

Parts of Dry cooling Tower?  A dry cooling tower is a complex system composed of several key components that work together to reject heat through sensible heat transfer. Here are the main parts of a typical mechanical draft dry cooling tower, broken down by their function: 1. Heat Exchanger Bundle (The Core) This is the […]

Where Dry Cooling tower used. Dry cooling towers are the technology of choice in locations where water is scarce or environmental regulations restrict water usage and vapor plumes. Dry Cooling Tower is a water-saving cooling system that trades off higher cost and lower efficiency for the crucial benefit of minimal water consumption, making it...

Advantages of Dry Cooling Tower

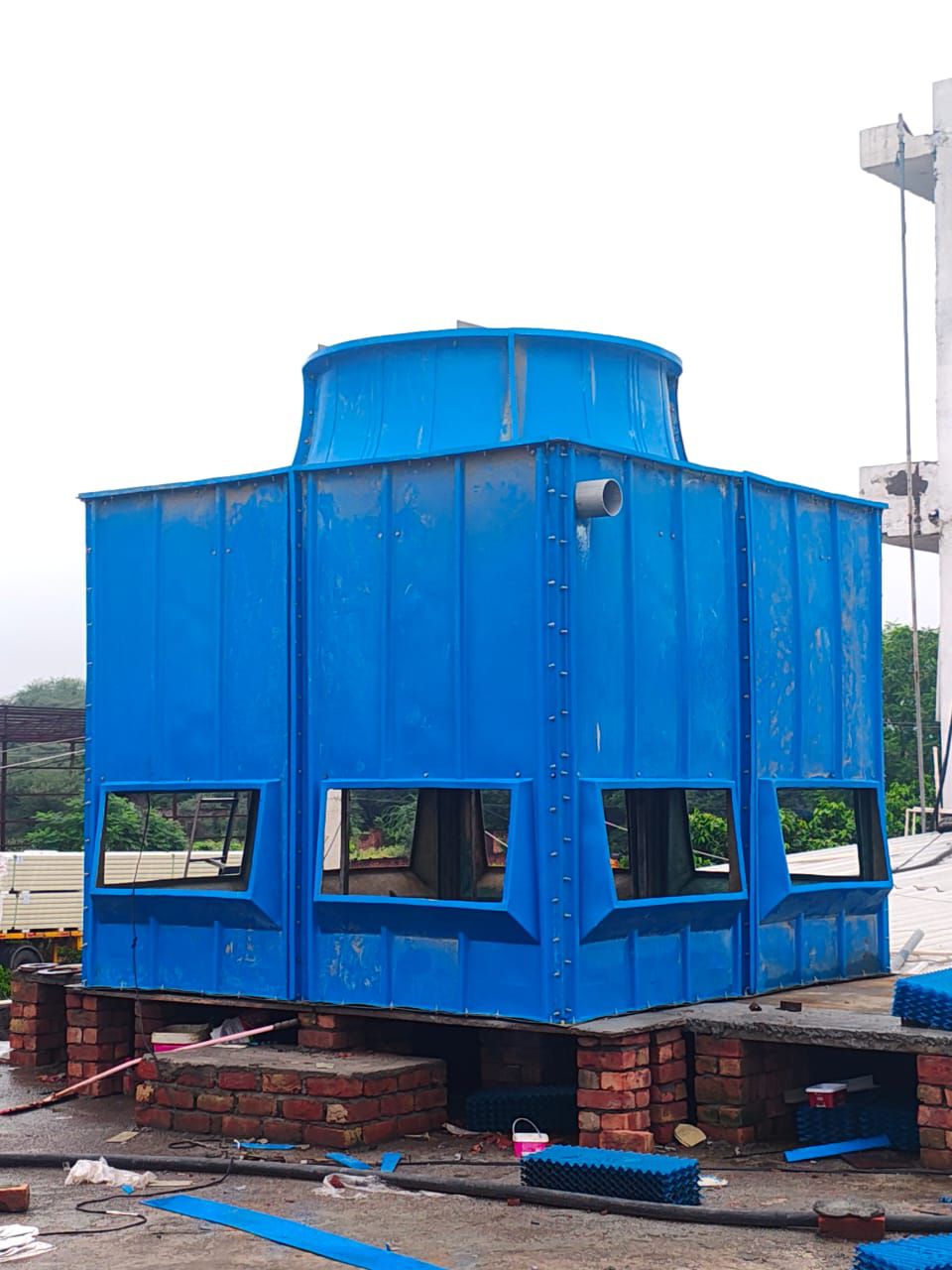

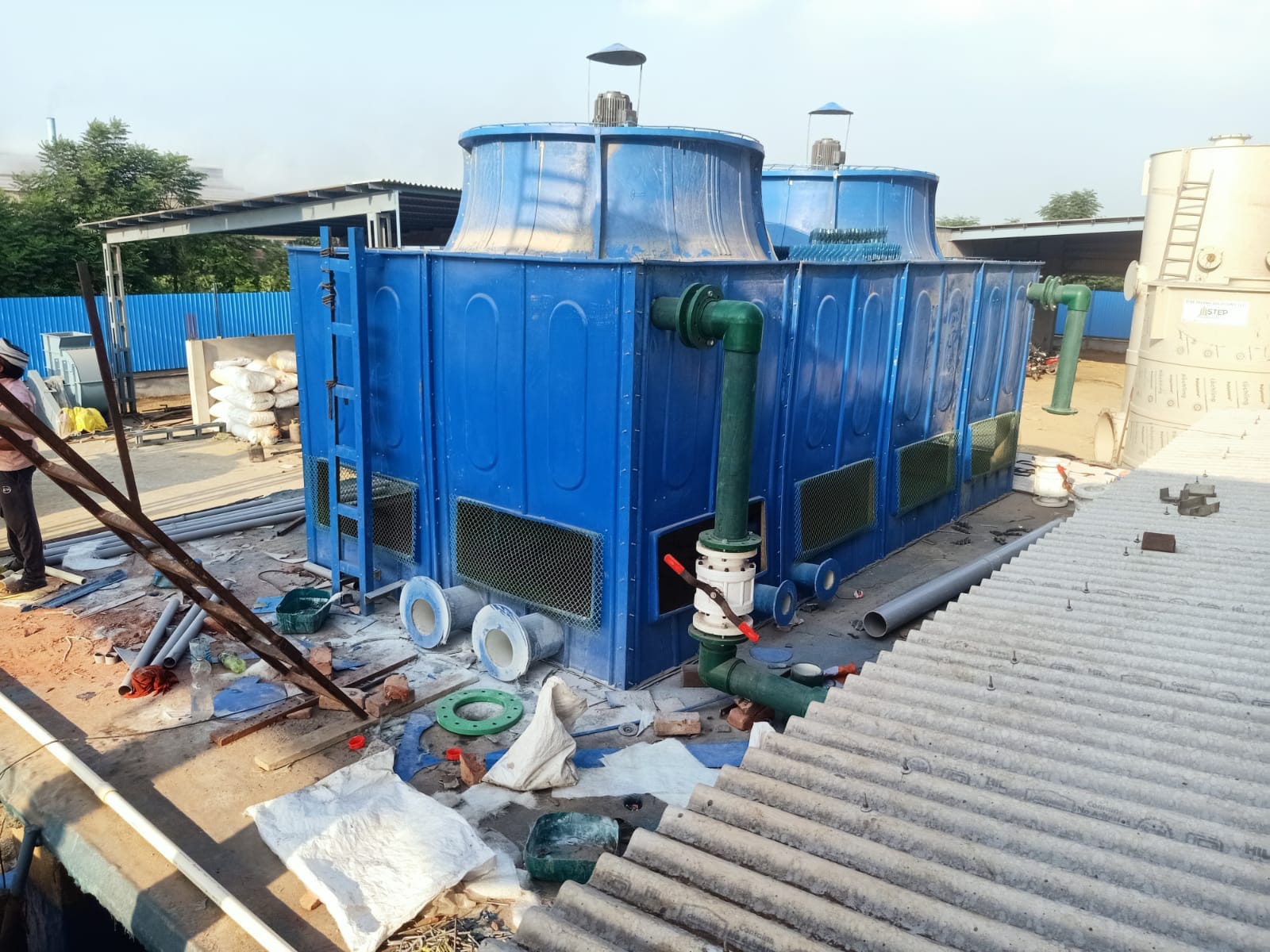

Types of Dry Cooling Towers There are two main configurations:

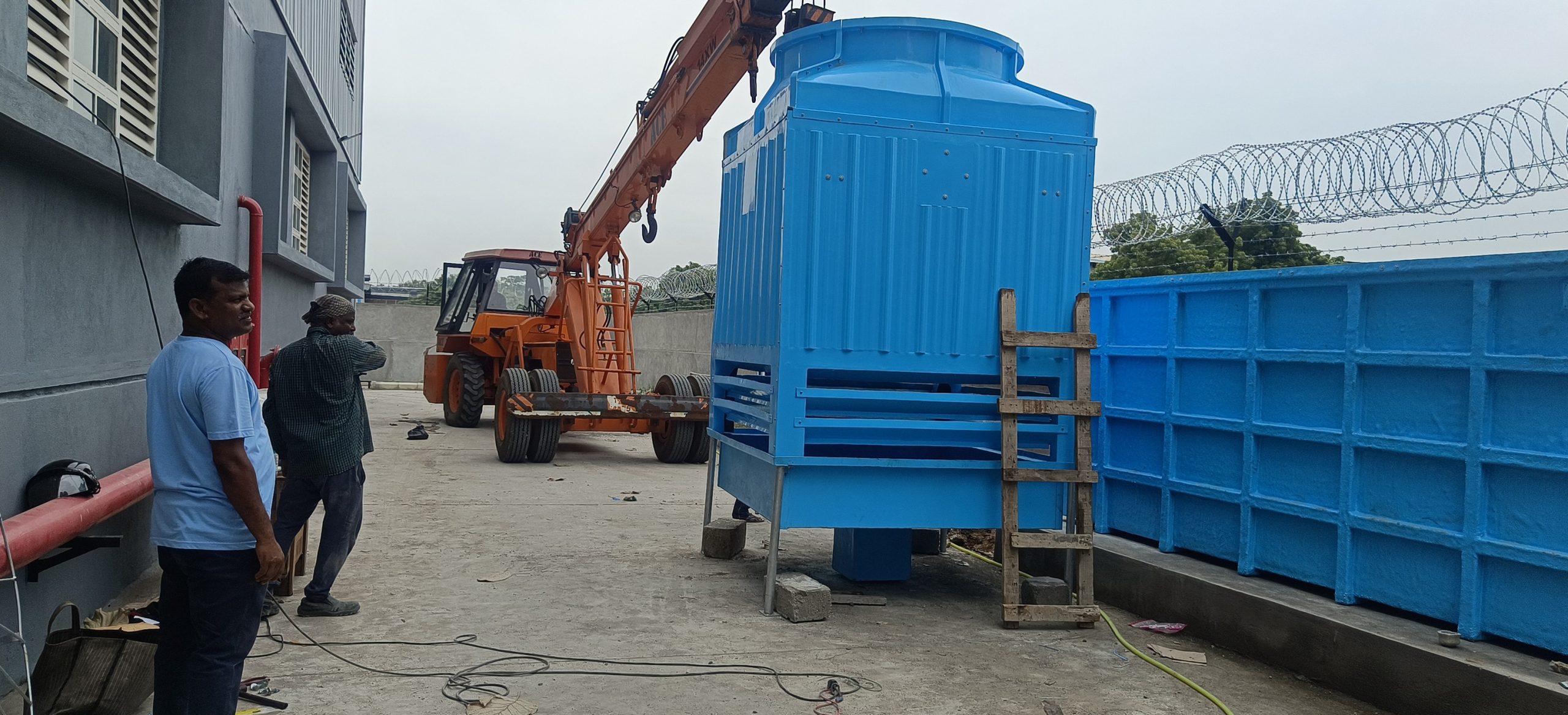

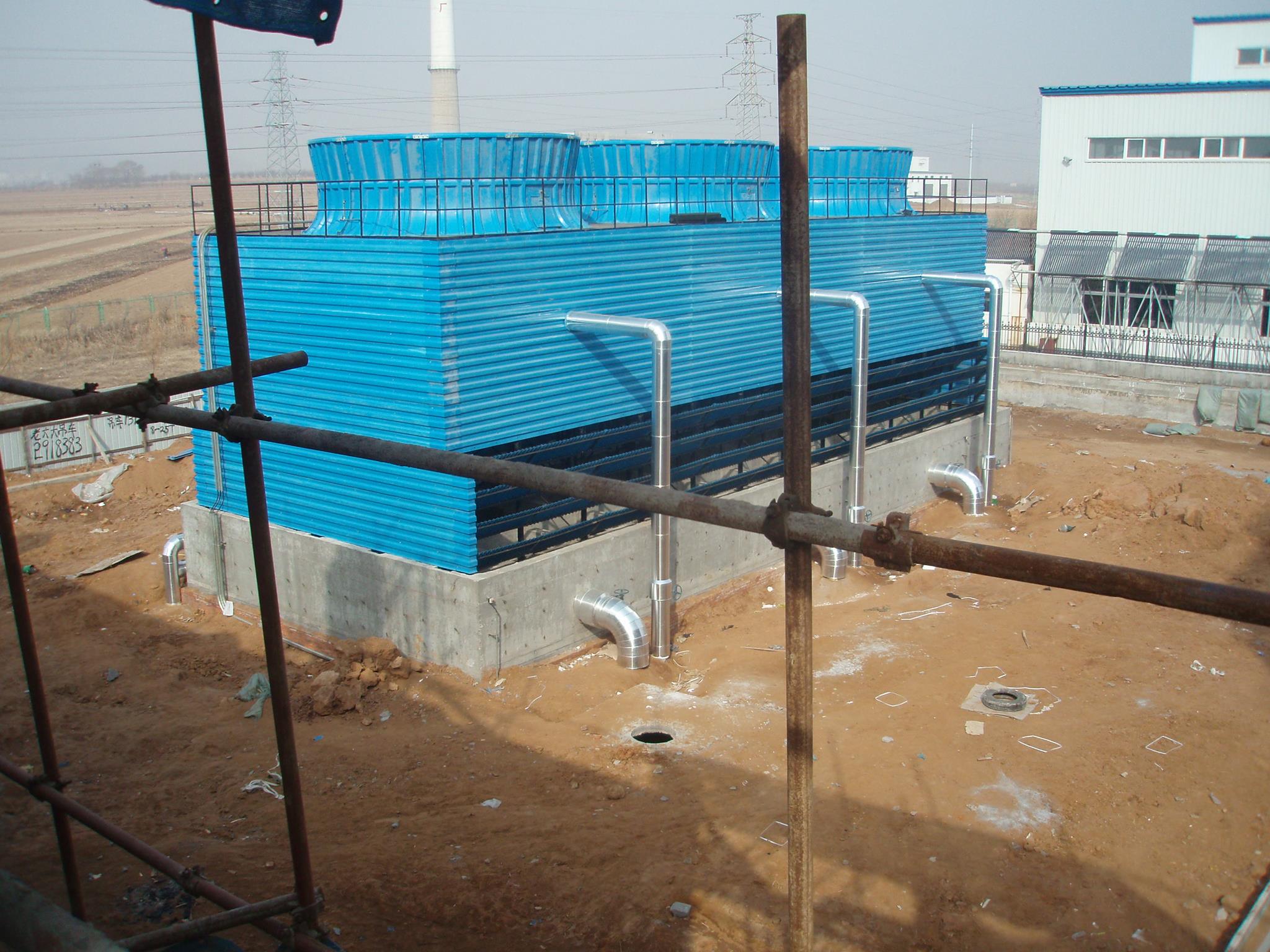

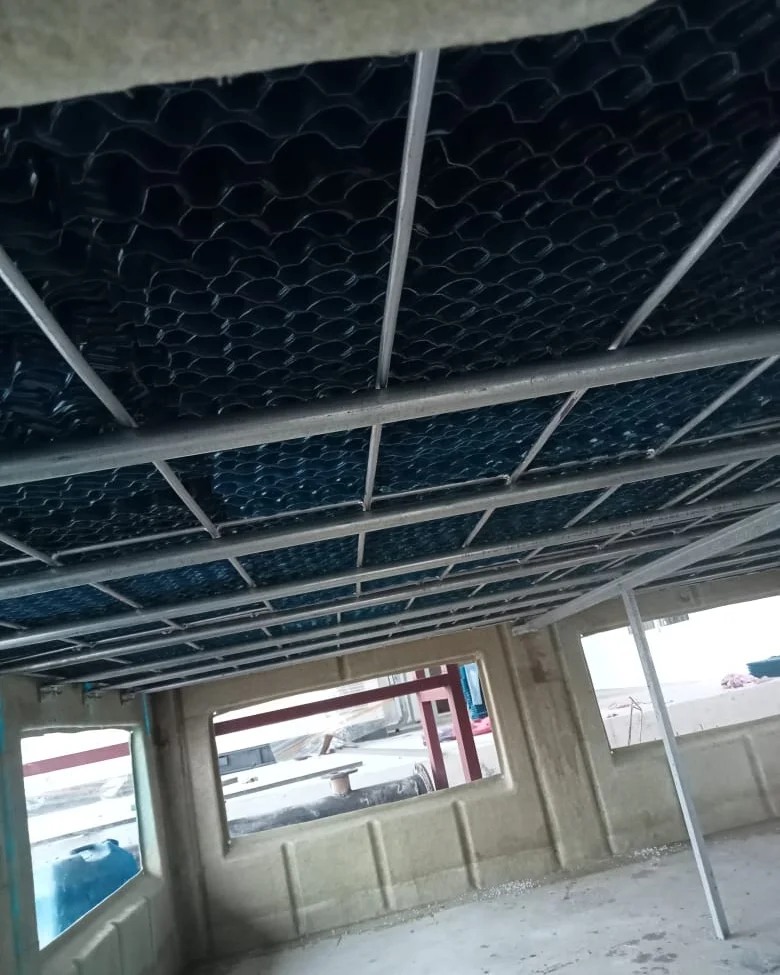

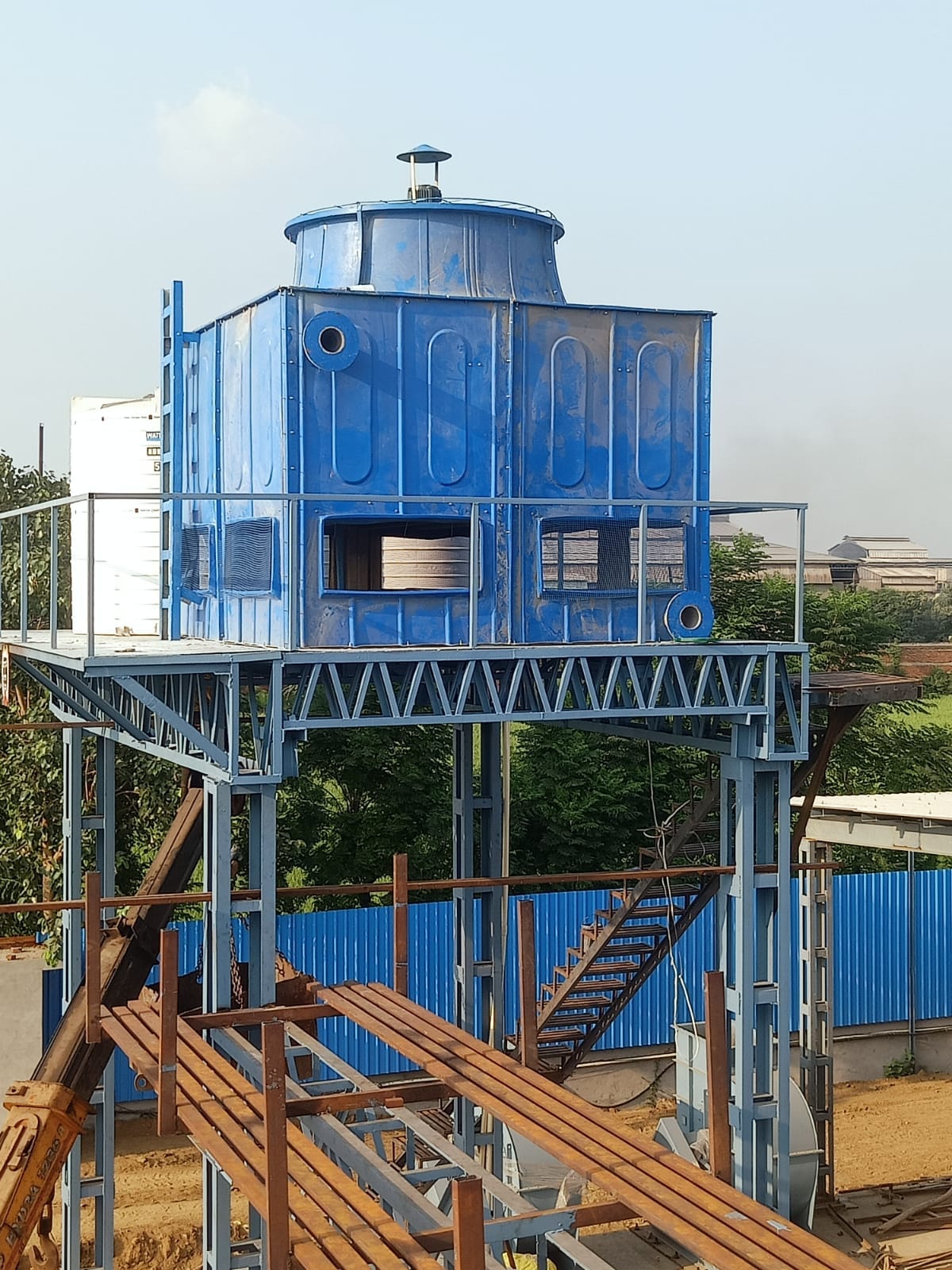

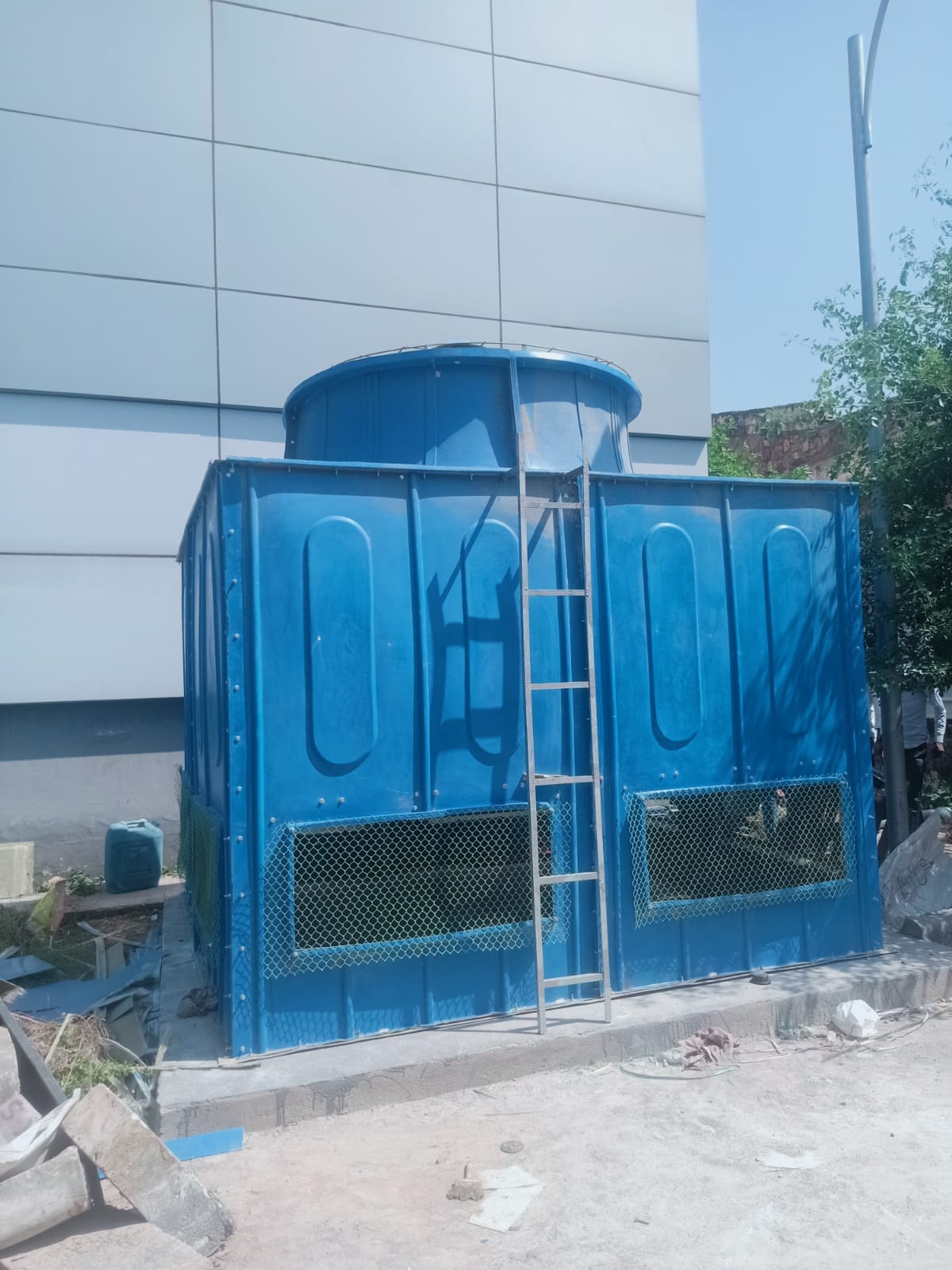

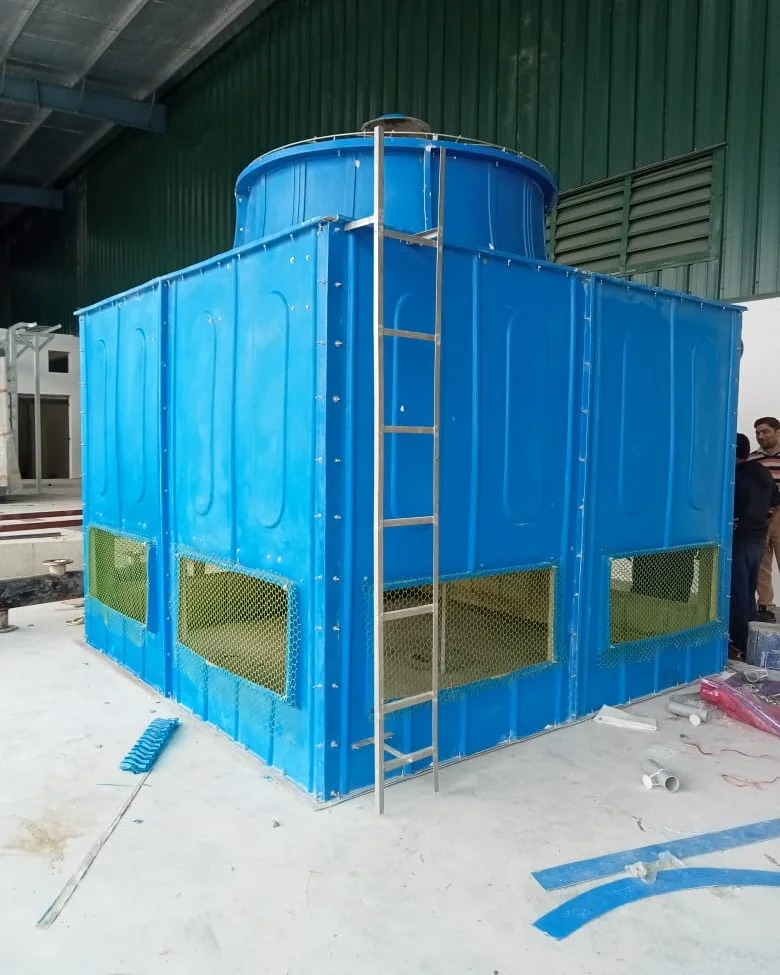

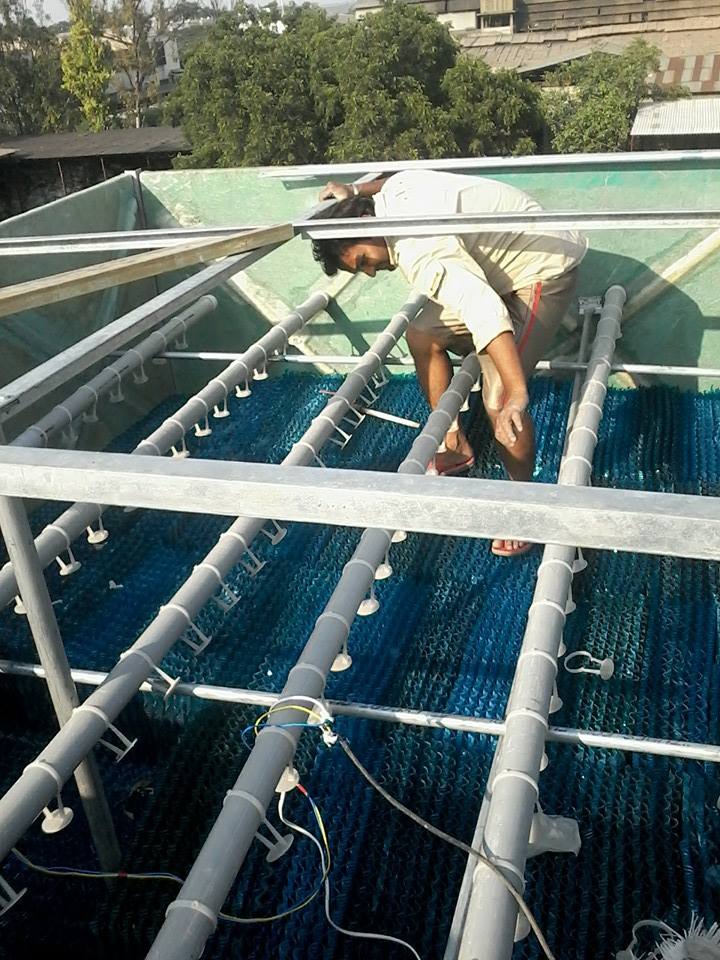

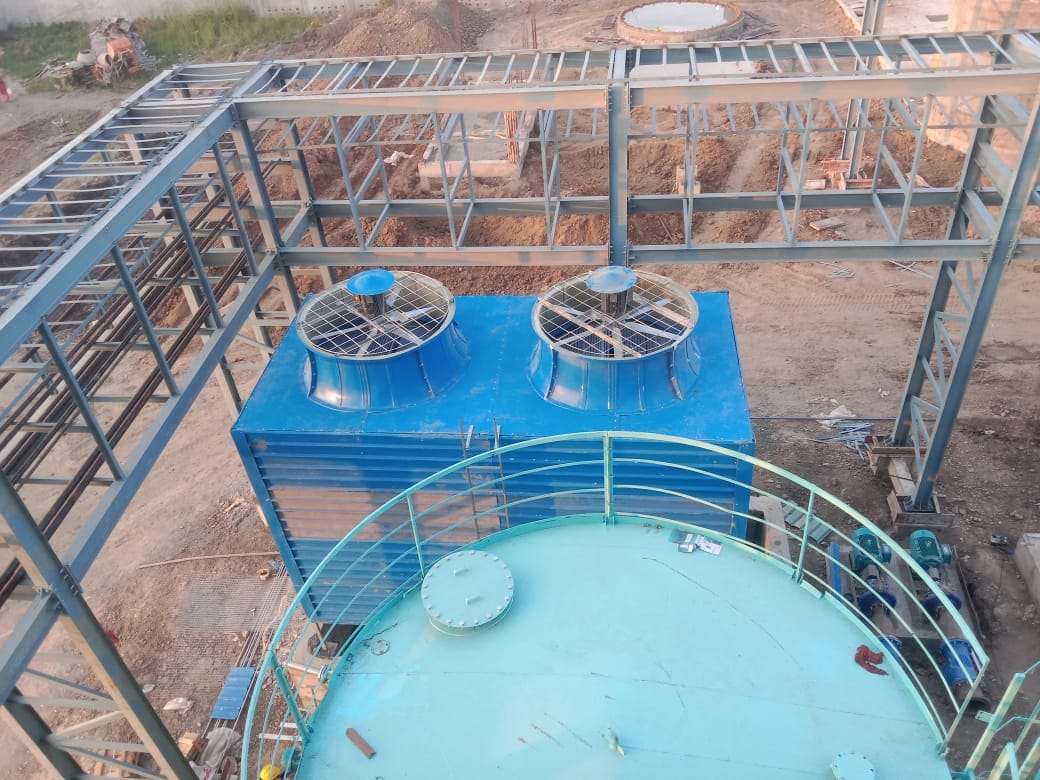

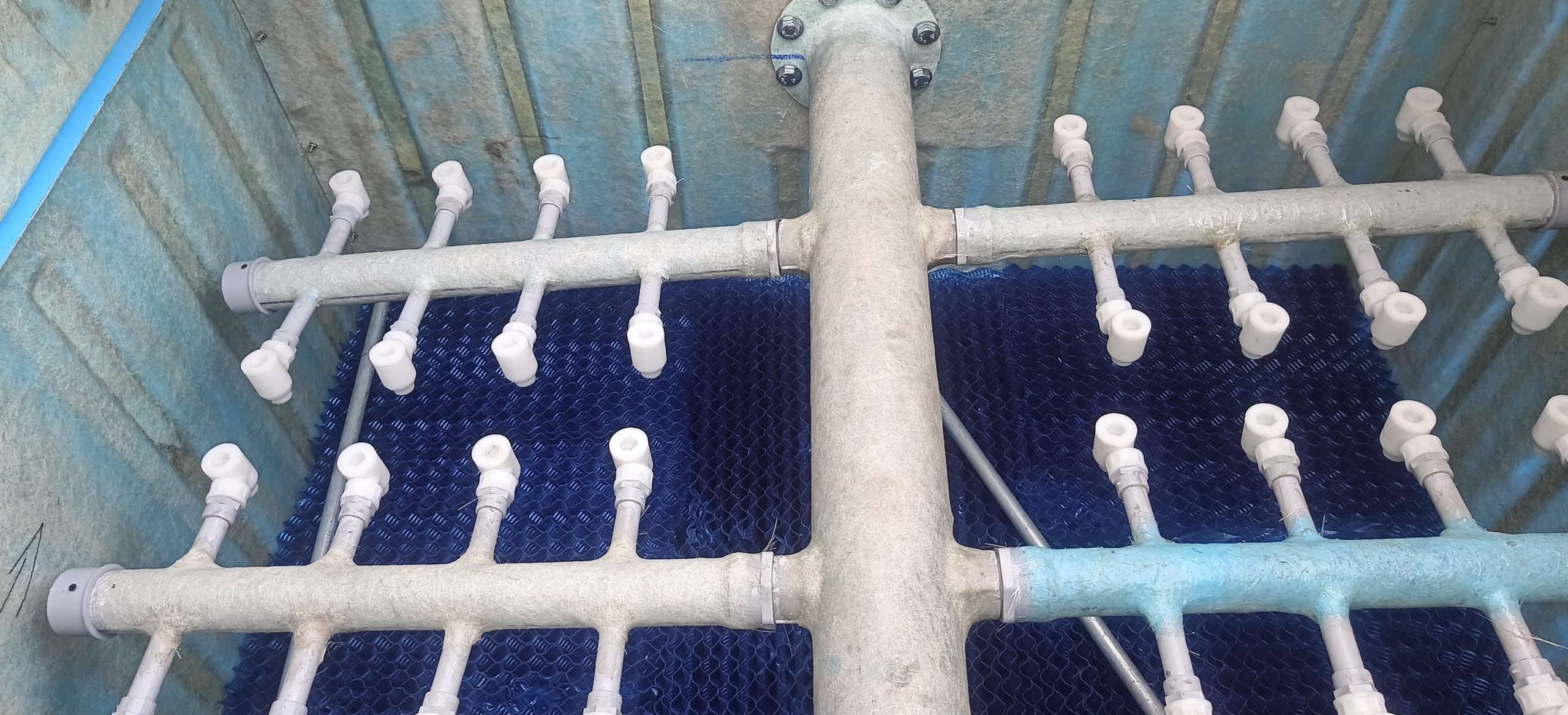

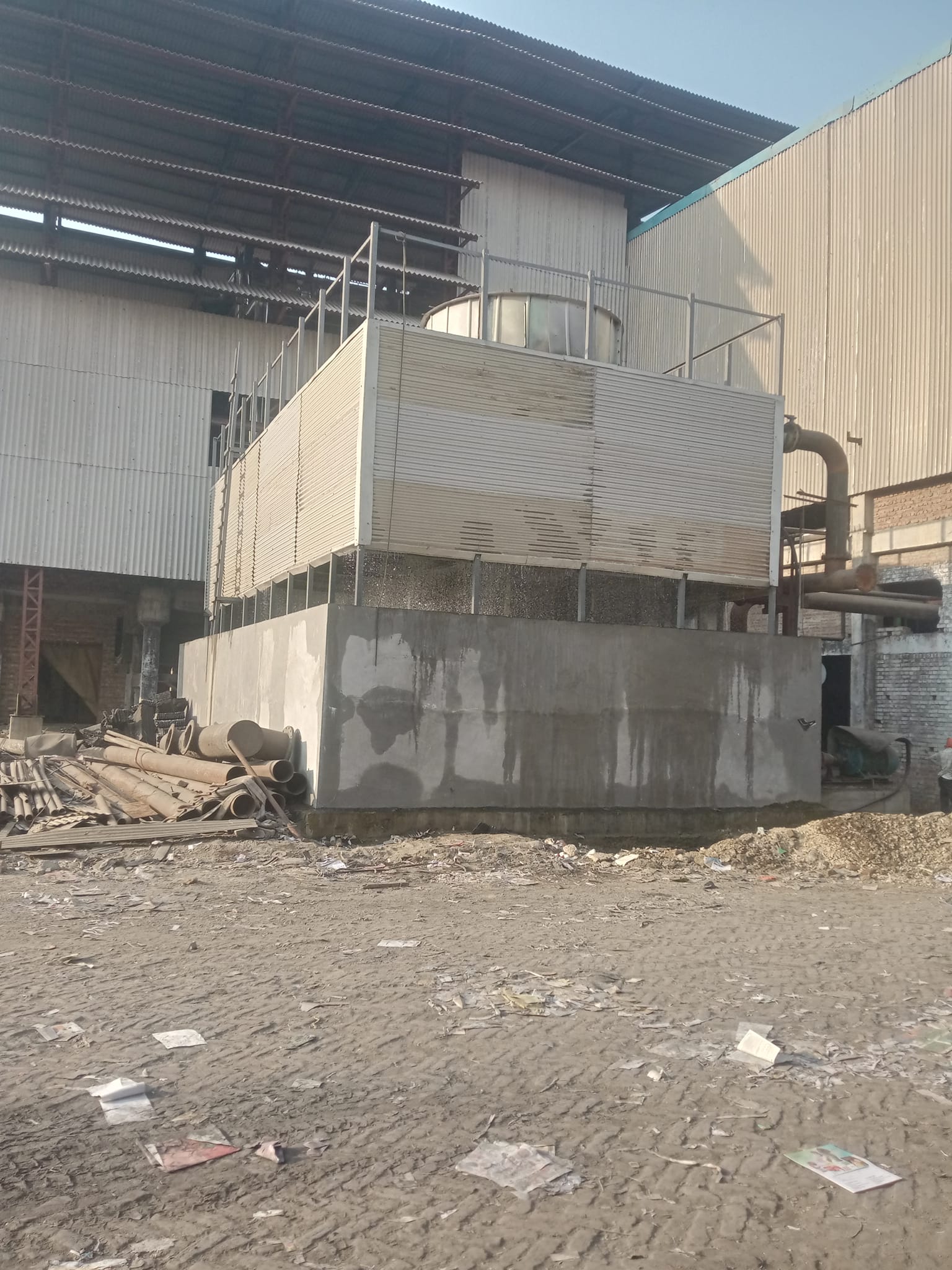

Dry Cooling Tower vs. Wet Cooling Tower Feature Dry Cooling Tower Wet Cooling Tower (Evaporative) Principle Sensible Heat Transfer (like a car radiator) Latent Heat Transfer (evaporation) Water Usage Very Low. Only minor makeup water for the closed loop. Very High. Continuous water loss due to evaporation, drift, and blowdown....

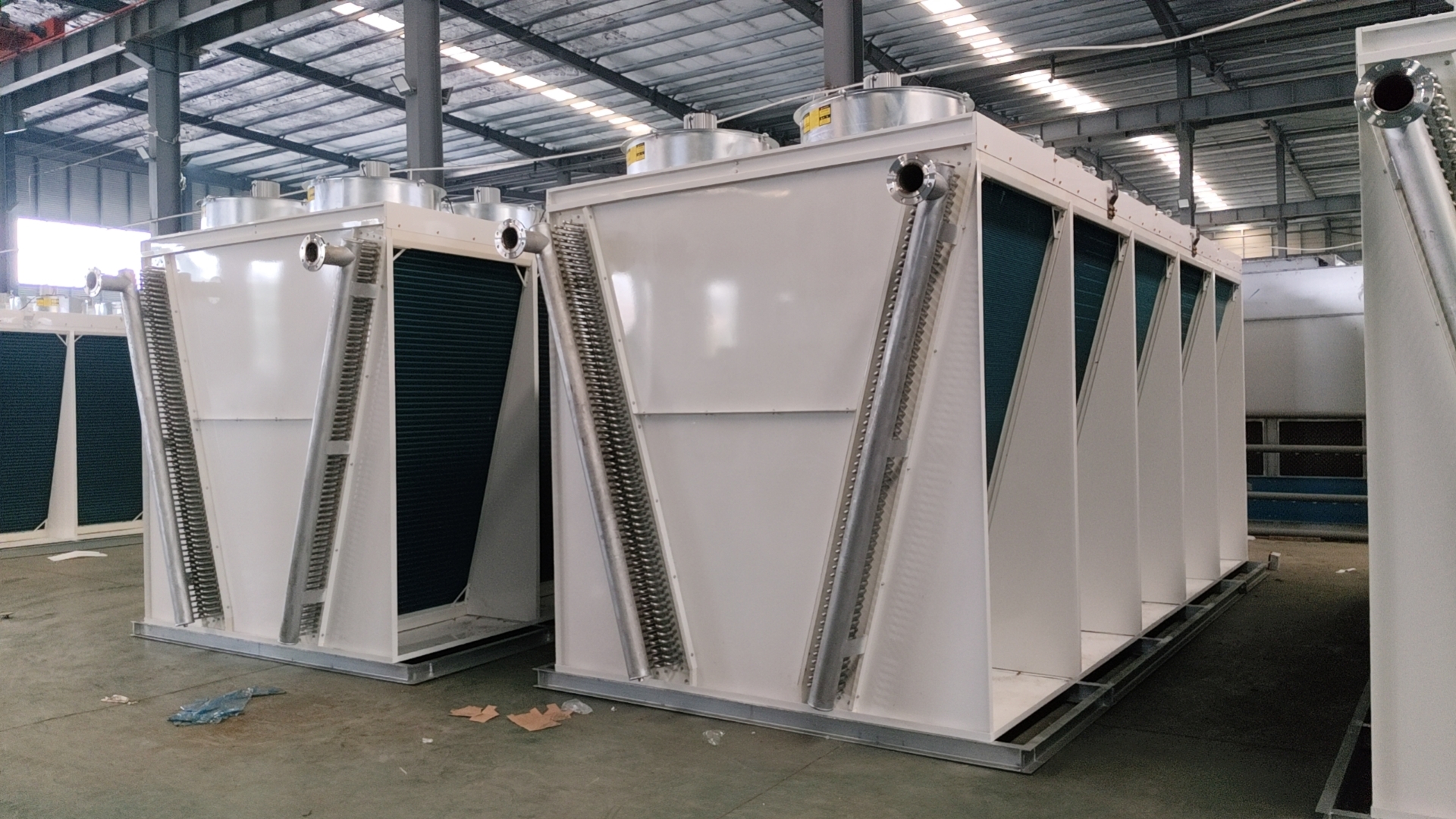

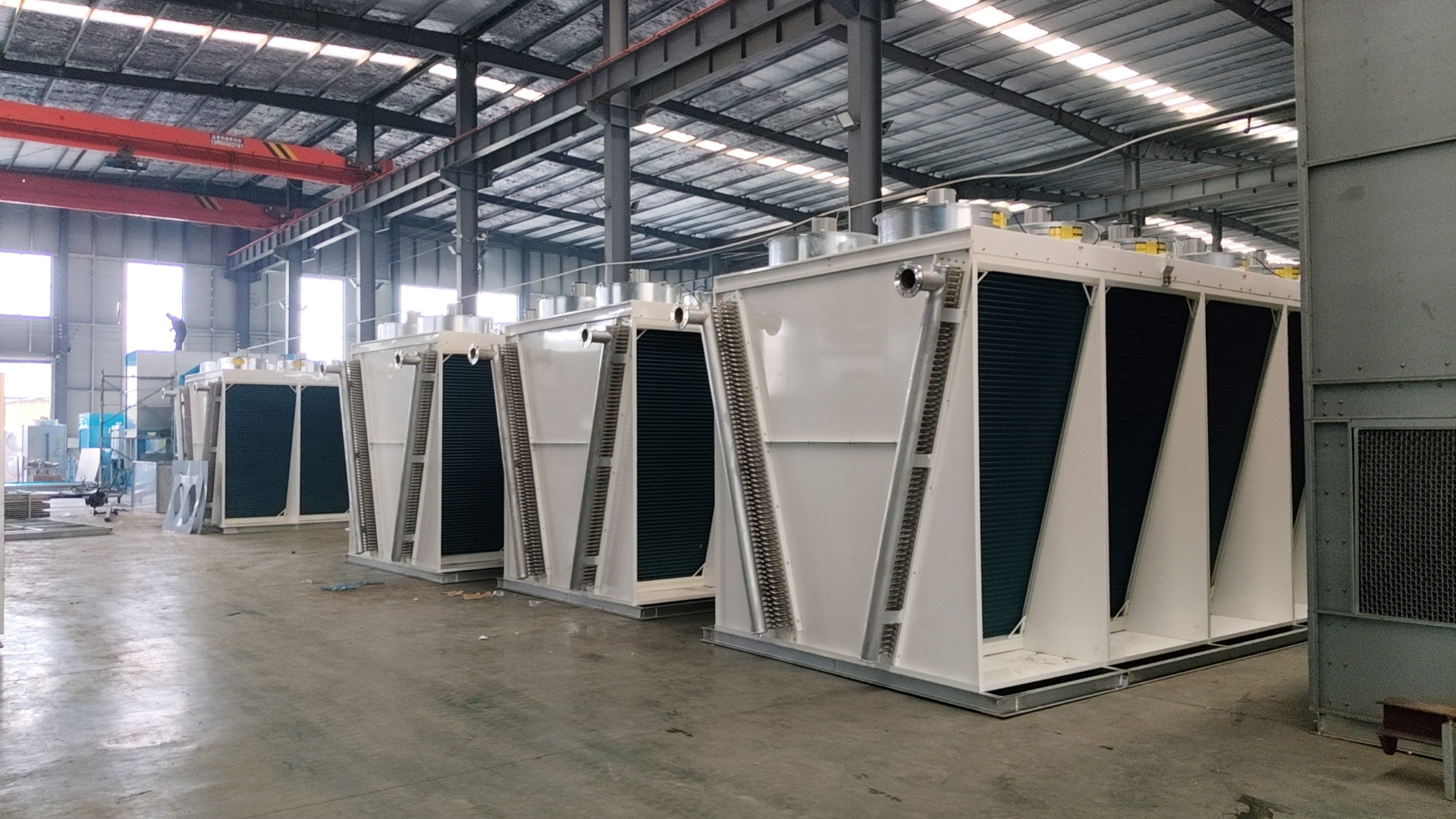

Working Principle of Dry Cooling Tower.

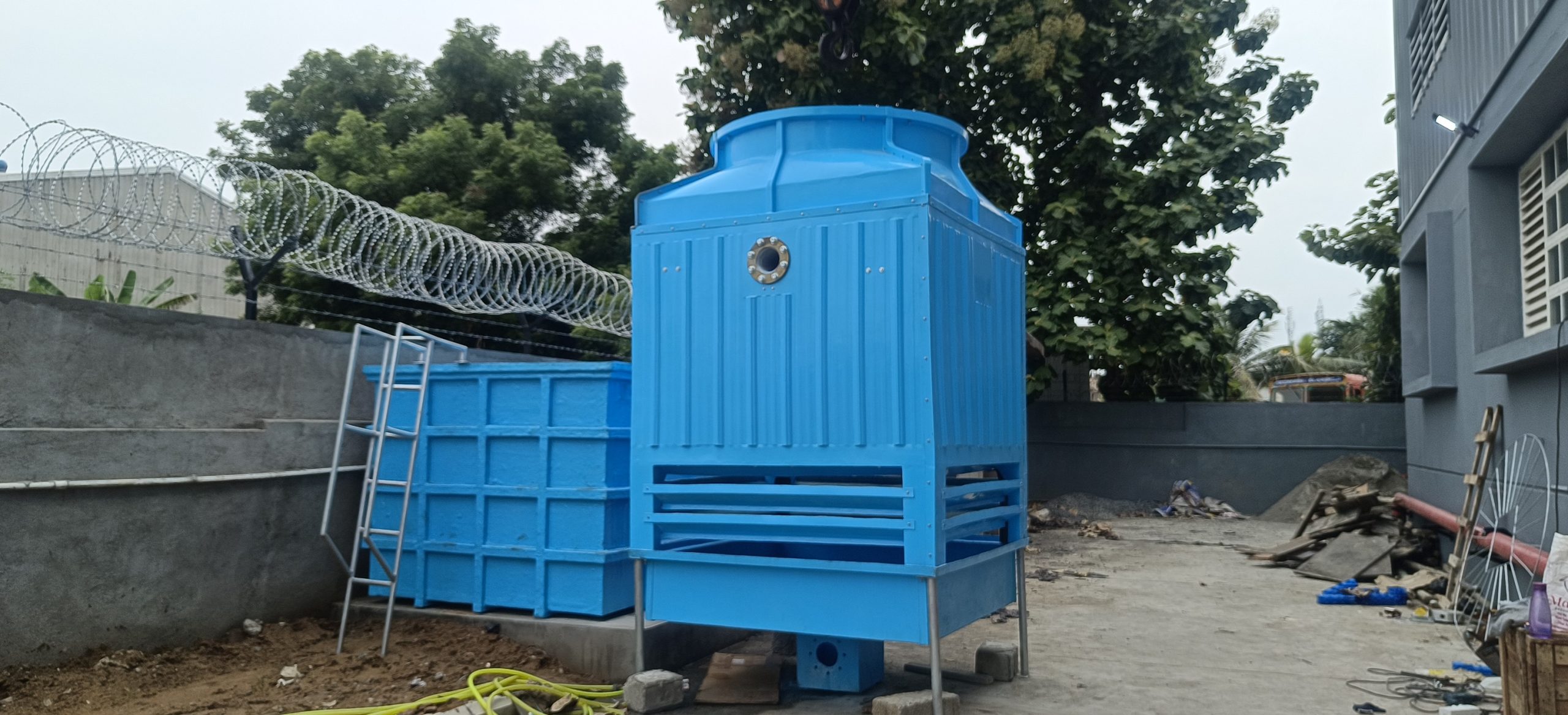

A Dry Cooling Tower is a heat rejection device that cools a working fluid (most often water or a water-glycol mixture) without direct contact with the air and without any water loss through evaporation. Think of it as a giant, industrial-sized radiator, similar in principle to the radiator in your car. It uses the principles...
