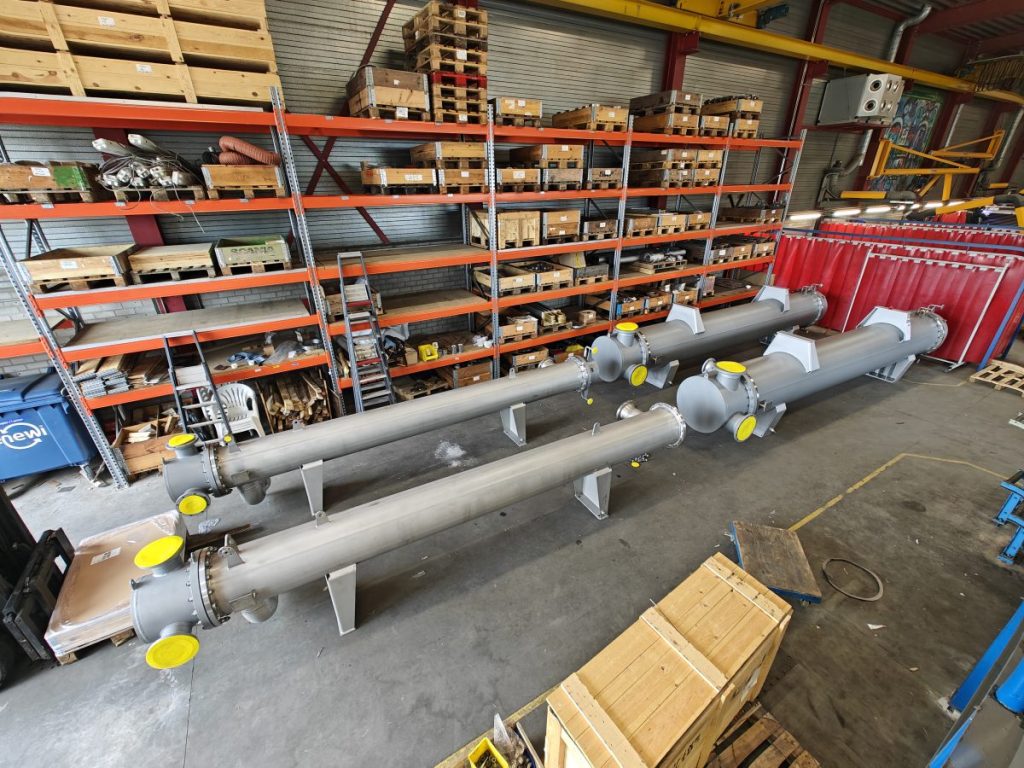

Stainless Steel tube bundle oil cooler
What is a Stainless-Steel Tube Bundle Oil Cooler?
It is a water-cooled oil cooler where the internal tube bundle is made from stainless steel tubes. In this design:
- One fluid (usually oil) flows on the shell side (around the outside of the tubes).
- The other fluid (coolant – water or glycol) flows on the tube side (through the inside of the tubes).
- Heat is transferred from the oil through the stainless-steel tube walls to the coolant.
Key Advantages of Stainless-Steel Tubes:
- Superior Corrosion Resistance:
- This is the primary reason for choosing stainless steel. It highly resists corrosion from a wide range of coolants and oils.
- Grade 316 SS, with its molybdenum content, offers excellent resistance to chlorides (like saltwater) and pitting corrosion, making it the choice for harsh environments.
- Excellent Material Compatibility:
- Oil Compatibility: Stainless steel is inert to virtually all oils and lubricants, including synthetic oils and those with extreme pressure (EP) additives (e.g., high sulphur content) that can attack and corrode copper-based alloys (admiralty brass). This is a critical advantage.
- High Mechanical Strength and Durability:
- Stainless steel has much higher tensile strength than copper or brass. This allows for:
- Thinner Tube Walls: Which can partially offset the lower thermal conductivity.
- Higher Pressure Ratings: The cooler can withstand much higher internal pressures on both the shell and tube sides.
- Resistance to Vibration and Erosion: More resistant to damage from fluid-borne particles or flow-induced vibration.
- Stainless steel has much higher tensile strength than copper or brass. This allows for:
- Temperature Resistance:
- Retains its strength and integrity at higher operating temperatures than copper alloys.
Typical Applications:
Stainless steel tube bundles are specified where their specific advantages outweigh the lower heat transfer efficiency. They are ideal for:
- Marine and Offshore Applications: Especially when using seawater as the coolant. 316 Stainless Steel is the standard material for this harsh, chloride-rich environment.
- Chemical and Process Industries: Where the oils, fluids, or coolants are corrosive and would attack other materials.
- Systems with Synthetic Oils or EP Additives: Common in high-performance engines, aerospace, and advanced hydraulic systems where oil chemistry is incompatible with copper.
- High-Pressure Systems: Where the mechanical strength of stainless steel is required to contain the pressure.
- Food, Pharmaceutical, and Beverage Processing: Where sanitation and corrosion resistance are paramount; often required to meet FDA standards.
