How an Oil Cooler Works (The Basic Principle)
The principle is heat exchange. Hot oil flows through the cooler, and its heat is transferred to a cooler medium. There are two main types based on the cooling medium:
- Air-Cooled Oil Cooler:
• Design: Resembles a small radiator with fins and tubes.
• Process: Hot oil is pumped through the tubes. As air passes over the fins (from vehicle motion or a fan), heat is carried away.
• Best For: Applications with good airflow (front of a vehicle), transmissions, and where a separate circuit from the engine cooling system is desired. - Water-Cooled Oil Cooler (or Shell-and-Tube):

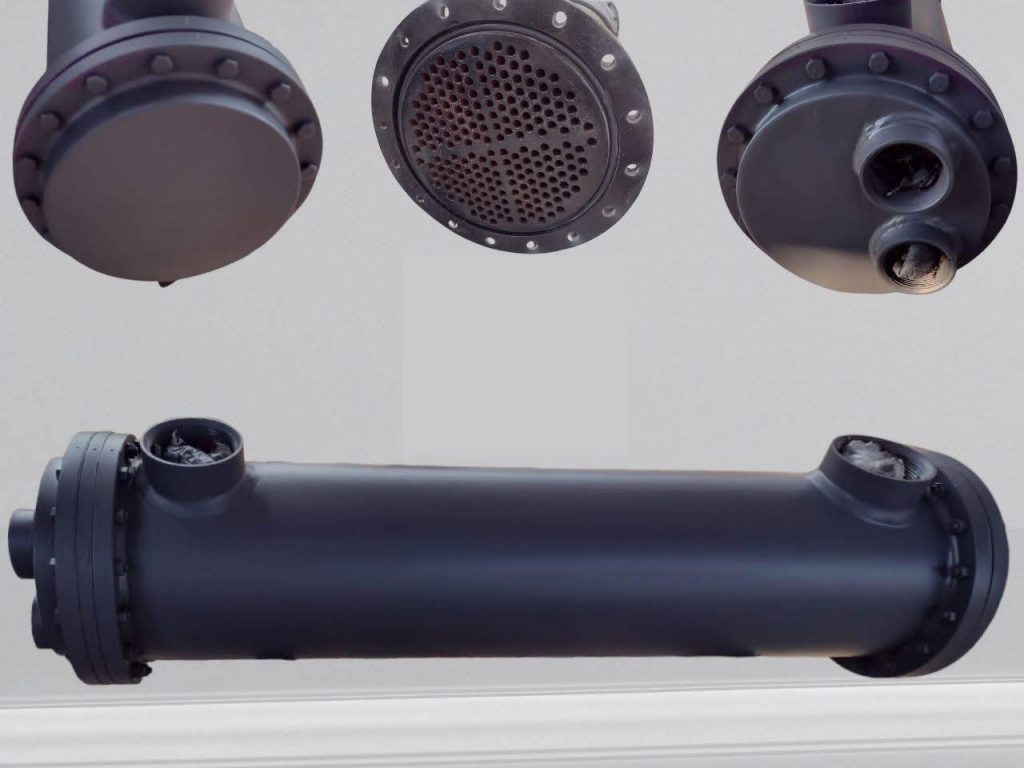

• Design: Typically has an outer “shell” filled with engine coolant and an inner core through which the hot oil flows.
• Process: Heat is transferred from the hot oil to the cooler engine coolant. The coolant then releases that heat via the main radiator.
• Advantage: Brings oil up to temperature faster from a cold start and maintains a more stable temperature, as coolant temp is regulated by the thermostat. Very compact.
• Best For: Engine oil cooling in many modern passenger vehicles, often integrated into the engine block or oil filter housing.
. Key Components of a Typical Aftermarket Oil Cooler Kit
- Cooler Core: The main heat exchanger unit.
- Sandwich Plate/Adapter: Fits between the oil filter and the engine block, providing ports to route oil to and from the cooler.
- Oil Lines: Hoses (often braided for strength) and fittings to connect the sandwich plate to the cooler.
- Thermostatic Valve (Optional but highly recommended): A thermostat that only allows oil to flow to the cooler once it has reached a predetermined temperature (e.g., 180°F / 82°C). This prevents the oil from being over-cooled, which is just as bad as being overheated, as it needs to be at operating temp to properly lubricate and remove contaminants.
5. Signs You Might Need an Oil Cooler
- Consistently High Oil Temperatures: (if you have a gauge).
- Vehicle Used for Towing or Racing: If you’re frequently pushing the vehicle beyond normal use.
- Transmission Slipping or Fluid Burning Smell: Indicates an overheating automatic transmission.
- Frequent Oil Changes Required: Due to oil breakdown.
- Loss of Power: Especially in turbocharged engines (heat soak).
. Installation & Maintenance Considerations
- Sizing: The cooler must be appropriately sized for the application. Too small is ineffective; too large can prevent the oil from reaching its proper operating temperature.
- Location: Must be mounted in a location with excellent airflow (e.g., front bumper, grill).
- Leaks: Proper installation of lines and fittings is critical to prevent catastrophic oil loss.
Maintenance: Keep the cooler fins clean and free of debris (bugs, dirt, leaves) to maintain its efficiency. Inspect lines periodically for cracks or wear.
