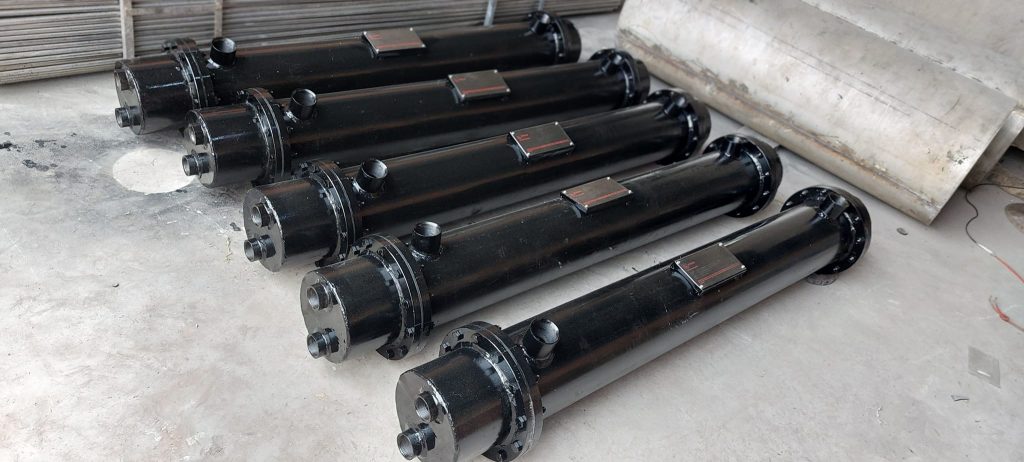

How to increase the efficiency of shell and tube oil cooler
On the Oil Side (Tube Side, typically):
- Increase Fluid Velocity: Higher velocity reduces the laminar sub-layer (the stagnant film of fluid on the tube wall), which is a major barrier to heat transfer.
- How? Use a higher flow rate or a pump with a higher capacity. Warning: Check the pressure drop! Doubling velocity quadruples pressure drop and requires more pumping power. Ensure the system can handle it.
- Turbulence Inducers: Install devices that create swirl or turbulence.
- How? Use turbulator inserts inside the tubes or specify tubes with internal rifling or grooves. This disrupts the laminar flow without always requiring a higher flow rate.
- Maintain Oil Quality: Degraded, sludgy oil has poorer thermal properties. Implement a strict oil analysis and change schedule.
On the Water/Coolant Side (Shell Side, typically):
- Increase Water Velocity: Similar to the oil side, higher velocity on the shell side improves heat transfer. This can be done by adjusting flow rates or using a different nozzle size.
- Baffle Design: Baffles are plates that direct the shell-side flow across the tube bundle. Properly designed segmental baffles with an optimal baffle cut and spacing prevent “dead zones” and ensure fluid flows across the tubes, not around them.
- Consider Baffle Type: For high-performance applications, Helical Baffles or Rod Baffles can be more efficient than segmental baffles, creating a swirling flow that improves heat transfer and reduces vibration and fouling.
Fouling layers act as a massive insulator. Keeping surfaces clean is the single most effective maintenance action.
- Regular Cleaning: Implement a preventive maintenance schedule for cleaning.
- Water Side: Use chemical descaling (e.g., citric acid) to remove mineral scale and biological growth.
- Oil Side: Use chemical solvents or, for severe fouling, professional ultrasonic cleaning.
- Water Treatment: For the shell-side water, use proper chemical treatment to prevent scaling, corrosion, and biological growth. This is a proactive way to minimize fouling.
- Install a Filtration System: A high-quality offline kidney loop filtration system on the oil side continuously removes particulates and water, preventing them from settling in the cooler.
2. Maximize the Effective Heat Transfer Area (A)
- Add Surface Area: This is a design change. If the cooler is consistently undersized, the most direct solution is to install a larger cooler with more or longer tubes.
- Keep the Area Clean: This is maintenance. A fouled tube has a reduced effective area for heat transfer. A layer of scale or sludge effectively makes the tube wall thicker and a worse conductor. Regular cleaning maintains the designed
Avalue. - Use Enhanced Surface Tubes: Consider retubing with tubes that have finned or extended surfaces on the outside (shell side). This dramatically increases the effective surface area without increasing the shell size.
