What is a Water-Cooled Oil Cooler?
A water-cooled oil cooler is a type of heat exchanger that uses engine coolant (water mixed with antifreeze) to remove heat from oil. It’s designed to keep the oil temperature within safe limits in systems like engines, transmissions, or hydraulic units.
◉ How It Works:
- Hot oil from the engine or hydraulic system flows into the oil cooler.
- Inside the cooler, the oil flows through metal tubes or plates.
- Coolant (water + antifreeze) flows in a separate chamber, surrounding the oil tubes/plates.
- Heat transfers from the oil to the coolant.
- The cooled oil exits and returns to the system.
- The heated coolant continues to the main radiator to be cooled down.
- Car and truck engines
- Marine engines (boats and ships)
- Industrial hydraulic systems
- Power generators
◉ Advantages:
- Efficient cooling, especially in low airflow environments.
- Compact design, often integrated into the engine block.
- Not dependent on vehicle speed or external air.
- Better temperature control in high-performance or continuous-duty machines.
Disadvantages:
- More complex system (requires coolant plumbing).
- Risk of oil–coolant cross-contamination if internal leak occurs.
- Requires maintenance of both the oil and the coolant systems.

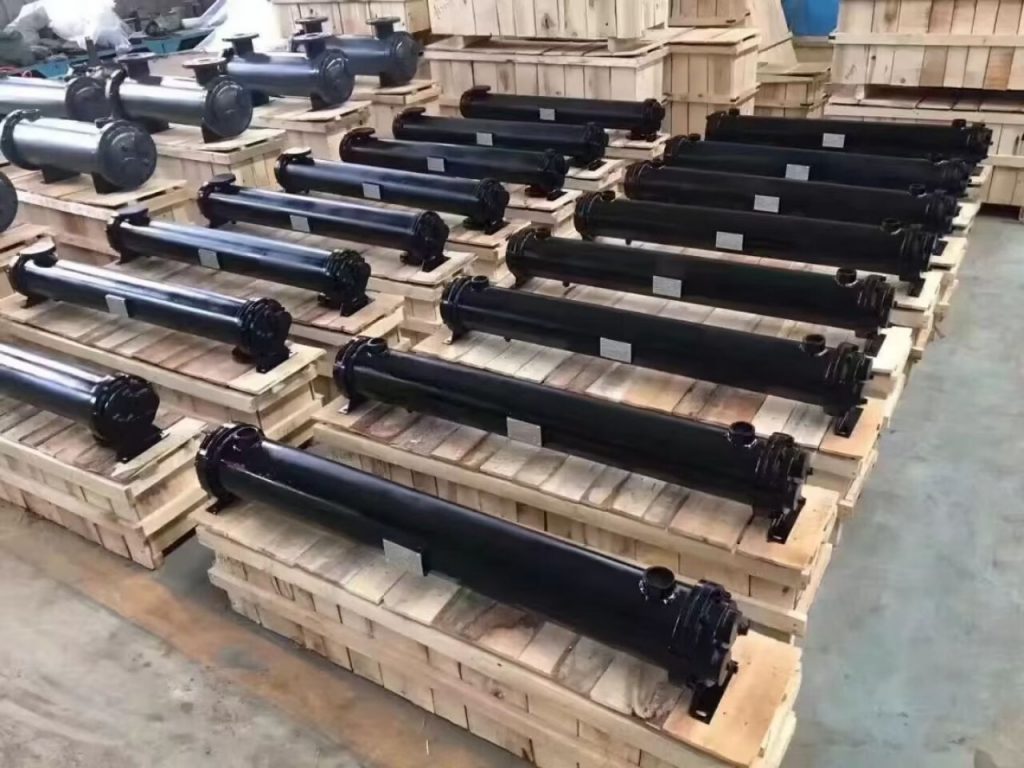

A shell-and-tube or plate-style heat exchanger where:
- Oil flows through internal tubes.
- Coolant flows around or between the tubes in a separate channel.
[Oil IN]---> |Tube (Oil) Inside| <--- Coolant surrounds it ---> [Oil OUT]
----------------
↑ Heat transfers here
