Bottle Shape vs. Square Cooling Tower
comparison between Bottle Shape and Square Cooling Towers to help you choose the right type for your application:
1. Design & Structure
| Feature | Bottle Shape Cooling Tower | Square Cooling Tower |
| Shape | Cylindrical (narrow top, wider base) | Rectangular/Square |
| Footprint | Compact, space-saving | Larger but modular (expandable side-by-side) |
| Height | Taller | Shorter (wider base) |
| Aesthetics | Sleek, modern look | Industrial, functional design |
2. Airflow & Efficiency
| Feature | Bottle Shape Cooling Tower | Square Cooling Tower |
| Airflow Type | Mostly counterflow (air moves up, water falls down) | Mostly crossflow (air moves sideways, water falls down) |
| Draft System | Induced draft (fan at top, energy-efficient) | Forced or induced draft (fan at base or top) |
| Heat Transfer | Higher efficiency (counterflow design) | Good efficiency, but slightly lower than counterflow |
| Energy Use | Lower power consumption | Higher in forced draft models |
3. Performance & Maintenance
| Feature | Bottle Shape Cooling Tower | Square Cooling Tower |
| Noise Level | Quieter (fan at top, reduced noise) | Louder (especially forced draft models) |
| Maintenance | Harder to access (narrow top) | Easier (large access panels) |
| Water Loss | Lower drift (better drift eliminators) | Slightly higher drift in crossflow |
| Durability | Fiberglass (FRP) construction, corrosion-resistant | Galvanized steel/FRP, robust but may corrode over time |
4. Applications
| Feature | Bottle Shape Cooling Tower | Square Cooling Tower |
| Best For | – High-efficiency needs (power plants, refineries) – Space-constrained sites – Noise-sensitive areas | – Large industrial plants – Modular expansion needs – HVAC (data centers, malls) |
| Installation | Prefabricated, quicker setup | May require more assembly |
| Cost | Higher initial cost | More cost-effective for large capacities |
5.Advantages & Cons Summary
Bottle Shape Cooling Tower
Advantages
- Energy-efficient (counter flow + induced draft)
- Compact, space-saving
- Quieter operation
- Lower drift loss
Disadvantages
- Higher upfront cost
- Maintenance access can be tricky
- Less modular (harder to expand)

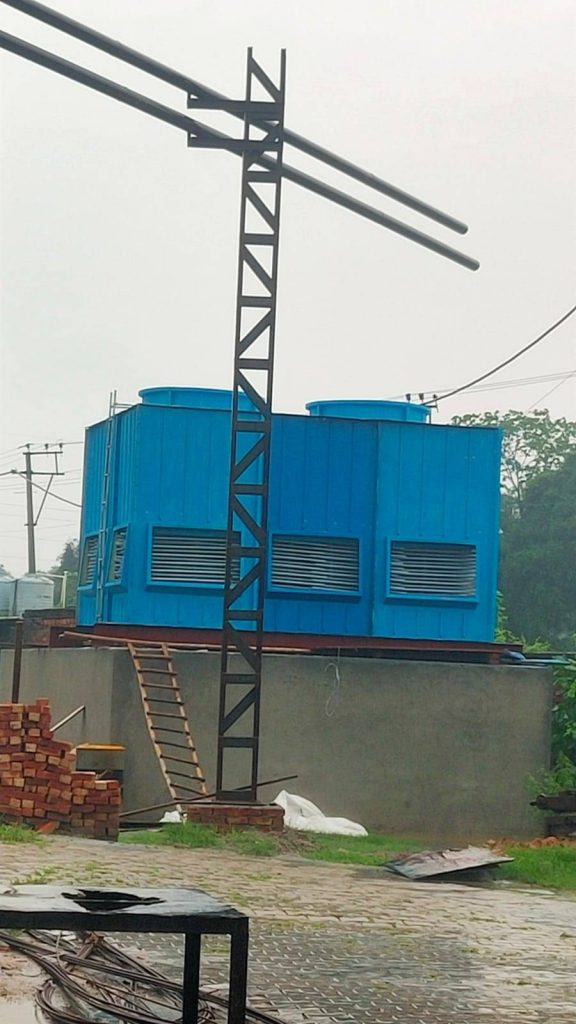

Square Cooling Tower
Advantages
- Modular & scalable (easy to expand)
- Easier maintenance (large panels)
- Lower cost for high-capacity needs
- Flexible (cross flow/forced draft options)
Disadvantages
- Larger footprint
- Noisier (forced draft models)
- Slightly less efficient than counter flow
Which One to Choose?
- Choose Bottle Shape If:
- You need high efficiency (e.g., power plants, chemical industries).
- Space is limited, but height is acceptable.
- Noise reduction is important (e.g., urban areas).
- Choose Square If:
- You need modular expansion (e.g., steel plants, large HVAC).
- Maintenance access is a priority.
- Cost-effectiveness for large-scale cooling is critical.
