Cross Flow Cooling Tower Vs Counter Flow Cooling Tower
1. Airflow & Water flow
- Cross flow:
- Air flows horizontally across the fill.
- Water flows vertically downward.
- Air and water are perpendicular.

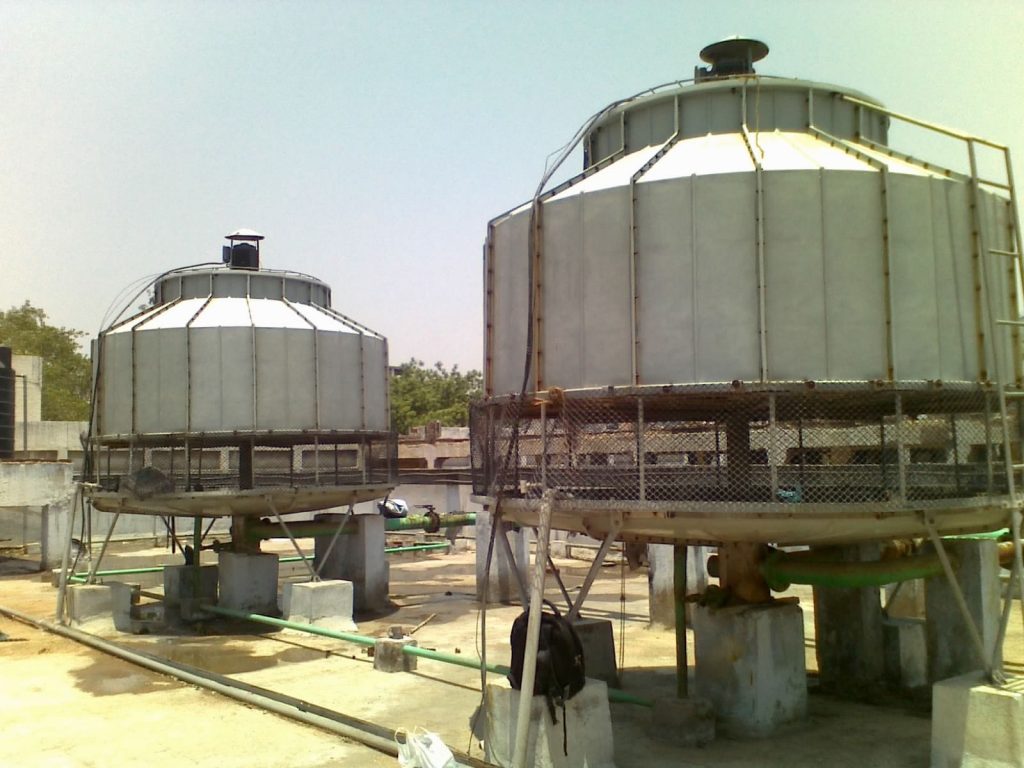

- Counter flow:
- Air flows vertically upward through the fill.
- Water flows vertically downward.
- Air and water are opposite (counter to each other).
. Efficiency
- Cross flow: Moderate efficiency (air does not always contact the coldest water directly).
- Counter flow: Higher efficiency (maximum temperature difference between air and water).
3. Water Distribution
- Cross flow: Uses gravity-fed hot water basins with orifices (no pressurization needed).
- Counter flow: Uses pressurized spray nozzles (requires pumping energy).
4. Tower Size & Shape
- Cross flow:
- Wider and shorter structure.
- More open, easier access.
- Counter flow:
- Taller and narrower (more compact footprint).
- Internals harder to reach.
5. Fan Power
- Cross flow: Lower fan power (less air resistance).
- Counter flow: Higher fan power (air must push through dense water spray).
6. Maintenance
- Cross flow: Easier → basins and nozzles are accessible from the top.
- Counter flow: More difficult → spray headers and fill are deep inside the tower.
7. Applications
- Cross flow:
- HVAC cooling towers (malls, hotels, office buildings).
- Medium industrial loads where ease of maintenance is important.
- Counter flow:
- Power plants, refineries, and chemical industries.
Applications where higher thermal efficiency and compact footprint are required
Cross flow vs Counter flow (Quick Comparison)
| Feature | Cross flow | Counter flow |
| Airflow Direction | Horizontal | Vertical (upward) |
| Water flow Direction | Vertical (downward) | Vertical (downward) |
| Air Vs Water | Perpendicular | Opposite (counter) |
| Efficiency | Moderate | Higher |
| Tower Size | Wider & shorter | Taller & compact |
| Fan Power | Lower | Higher |
| Water Distribution | Gravity basin (simple) | Pressurized spray (complex) |
| Maintenance | Easier | Harder |
| Applications | HVAC, medium cooling loads | Power plants, heavy industries |
