Cooling towers are classified based on their airflow mechanism, design, and heat transfer method. Here are the main types of cooling towers:
1. Based on Airflow Generation
A. Natural Draft Cooling Tower
- Uses natural convection (no fans).
- Hot air rises due to buoyancy, pulling in cooler air at the base.
- Types:
- Hyperbolic towers (common in power plants).
- Rectangular towers (less common).
- Advantages: Low energy Disadvantages ConsConsumtion, high capacity.
- Disadvantages: Huge structure, expensive to build.
B. Mechanical Draft Cooling Tower
- Uses fans to force or induce airflow.
- Types:
- Forced Draft
- Fan at the bottom pushes air upward.
- More efficient but noisy.
- Induced Draft
- Fan at the top pulls air through the tower.
- More common, less noise, better air distribution.
- Forced Draft
- Advantages: Compact, controllable airflow.
- Disadvantages: Higher energy use than natural draft.
2. Based on Water & Air Flow Direction
A. Crossflow Cooling Tower
- Air flows horizontally across falling water.
- Gravity distribution (no spray nozzles needed).
- Advantages: Lower pump pressure, easy maintenance.
- Disadvantages: Larger footprint.
B. Counterflow Cooling Tower
- Air flows upward, opposite to falling water.
- Uses spray nozzles for better water distribution.
- Advantages: More efficient, smaller footprint.
- Disadvantages: Higher pump pressure required.
3. Based on ConsConstruction of Material
A. Wooden Cooling Towers
- Used in older systems (rare today).
- Prone to decay and fire hazards.

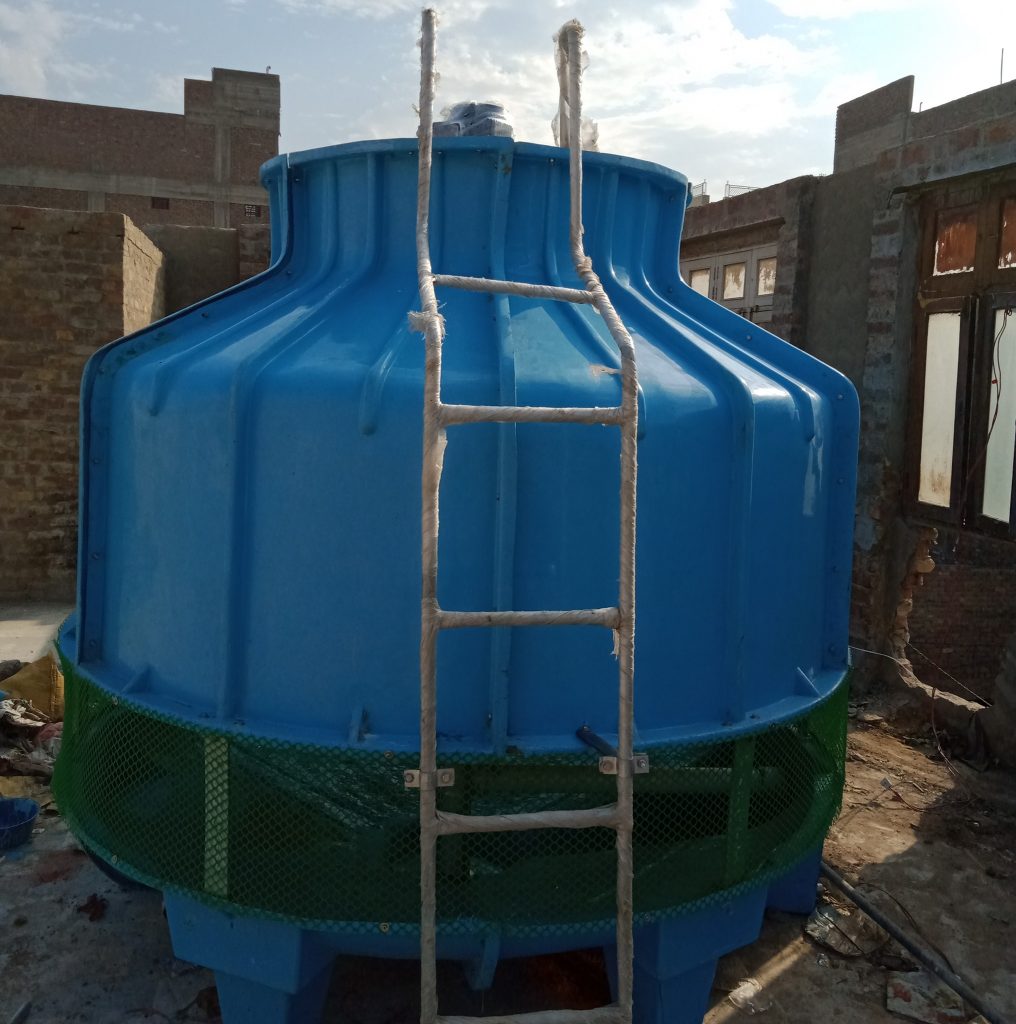

B. Fiberglass (FRP) Cooling Towers
- Lightweight, corrosion-resistant.
- Common in industrial applications.
C. Concrete Cooling Towers
- Used in large power plants.
- Durable but expensive.
D. Metal (Steel/Stainless Steel) Cooling Towers
- Used in harsh environments.
- Resistant to corrosion but costly.
4. Based on Heat Transfer Method
A. Open (Wet) Cooling Tower
- Direct contact between air & water.
- Advantages : High efficiency, lower cost.
- Disadvantages : Water loss due to evaporation, scaling, and biological growth.
B. Closed-Circuit (Dry) Cooling Tower
- Uses a heat exchanger (no direct water-air contact).
- Advantages: No water loss, minimal scaling.
- Disadvantages: Higher initial cost, less efficient than wet towers.
C. Hybrid (Wet/Dry) Cooling Tower
- Combines wet & dry cooling for efficiency.
- Reduces water usage while maintaining performance.
5. Specialized Types
- Field-Erected Cooling Towers (Large, built on-site for power plants).
- Package Cooling Towers (Prefabricated, small-scale for HVAC).
- Evaporative Cooling Towers (Uses evaporation for cooling).
- Dry Cooling Towers (Uses only air, no water loss—common in water-scarce areas).
Which Type is Best?
- Power plants → Natural draft or large induced draft.
Industries → Mechanical draft (crossflow/counterflow
