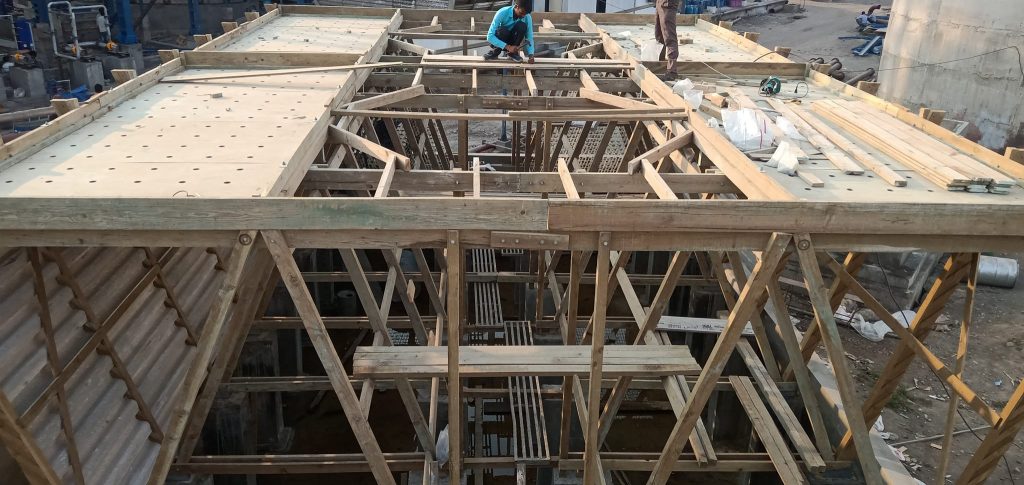

Wooden Cooling Tower Manufacturer inMorocco

Thermal Balancing in Cooling Towers:

Thermal balancing ensures uniform heat distribution across a cooling tower, maximizing efficiency and preventing hot spots, scaling, or uneven cooling. Here’s how to achieve it:

1. Understand Thermal Imbalance Causes

Common reasons for uneven cooling:

• Clogged nozzles → Uneven water distribution.
• Dirty/blocked fill media → Reduced air-water contact.
• Fan/blower misalignment → Inconsistent airflow.
• Variable pump speeds → Fluctuating water flow rates.
• Sun/wind exposure → Uneven evaporation.

2. Steps to Achieve Thermal Balance

Step 1: Measure Temperature Distribution

• Use infrared thermography or probe sensors at multiple points:
  • Hot water inlet (top).
  • Cold water basin (bottom).
  • Across fill media (left/right sections).
• Acceptable variance: ±1–2°C across the tower.

Step 2: Balance Water Flow

• Check nozzle alignment – Clean/replace clogged nozzles.
• Adjust flow valves – Ensure equal water distribution.
• Verify pump performance – Match design flow rates (GPM).

Step 3: Optimize Airflow

• Inspect fan blades – Ensure no damage/misalignment.
• Adjust fan speed (VFD-controlled towers).
• Clear air intake louvers – Remove debris blocking airflow.

Step 4: Clean & Maintain Fill Media

• Pressure-wash fills – Remove scale, algae, or debris.
• Replace damaged fills – Ensure uniform water breakup.

Step 5: Monitor Water Chemistry

• Test & adjust:
  • pH (7.0–8.5) – Prevents scaling/corrosion.
  • Biocide levels – Controls microbial growth.
  • TDS (Total Dissolved Solids) < 1,500 ppm – Reduces fouling.

Step 6: Address External Factors

• Sun/wind shielding – Install baffles to reduce uneven evaporation.
• Adjust tower staging (for multiple cells) – Balance load distribution.

3. Tools for Thermal Balancing

Tool	Purpose

Infrared camera	Detect hot/cold zones
Flow meters	Measure water distribution
Anemometer	Check airflow velocity
Water test kits	Monitor pH/TDS/biocide levels

4. Signs of Poor Thermal Balance

• Temperature differences > 3°C across the tower.
• Excessive drift or misting (indicates airflow issues).
• Scale buildup in certain sections (uneven evaporation).

5. Preventive Measures

 Monthly inspections (nozzles, fills, fans).
 Quarterly cleaning (removes blockages).
 Annual thermal imaging (identifies hidden imbalances).

Key Takeaways

1. Measure temps at multiple points to detect imbalance.
2. Balance water flow (nozzles, pumps, valves).
3. Optimize airflow (fans, louvers).

Maintain clean fills & water chemistry
