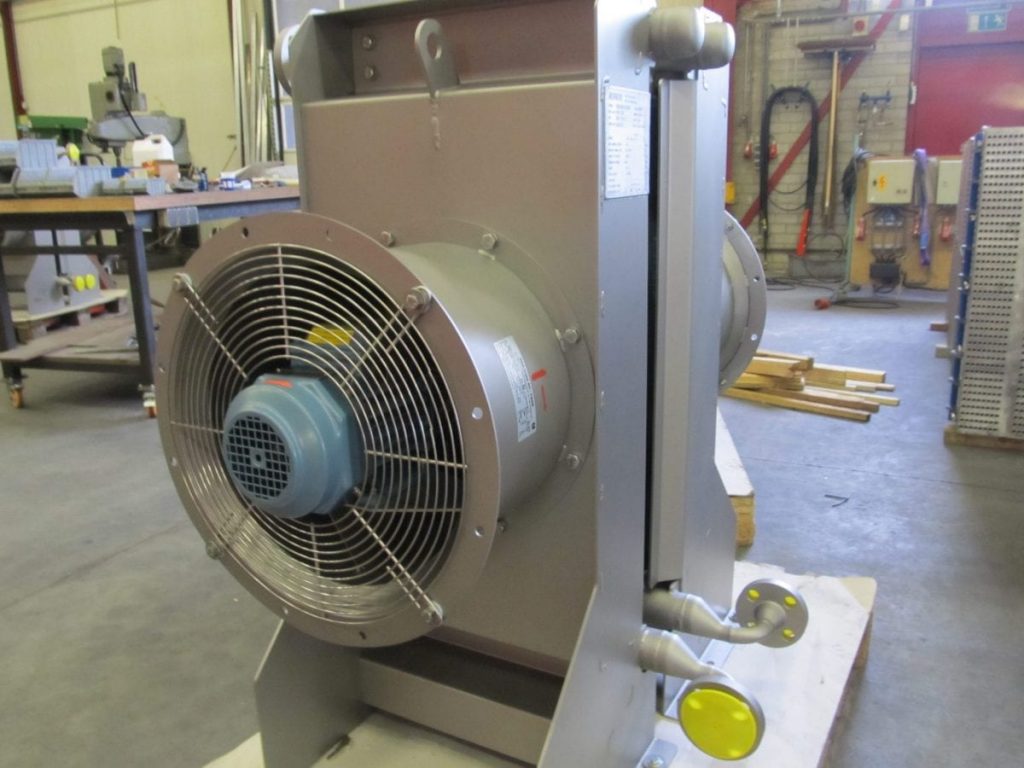

Air-Cooled Oil Cooler Maintenance Guide
Air-cooled oil coolers are essential for maintaining optimal oil temperatures in engines, hydraulic systems, and industrial machinery. Proper maintenance ensures efficiency, longevity, and prevents overheating. Below is a step-by-step maintenance checklist:
1. Regular Inspection
- Visual Check: Look for oil leaks, damaged fins, bent tubes, or debris build-up.
- Thermal Imaging (if available): Check for uneven cooling or hot spots.
- Mounting & Connections: Ensure the cooler is securely mounted and fittings are tight.
2. Cleaning the Cooler
A. External Cleaning (Air Side)
- Compressed Air: Blow out dust, dirt, and debris from fins (use low pressure to avoid damage).
- Soft Brush: Gently clean fins if clogged with stubborn particles.
- Water Rinse (if needed): Use a mild detergent and low-pressure water; avoid high-pressure jets.
B. Internal Cleaning (Oil Side)
- Flush the Oil Passages: Use a recommended oil system cleaner to remove sludge and deposits.
- Inspect for Contaminants: Check for metal shavings or excessive carbon build-up.
3. Check for Damage
- Fins: Straighten bent fins with a fin comb to maintain airflow.
- Tubes & Welds: Look for cracks or corrosion; repair or replace if damaged.
- Seals & Gaskets: Replace if worn or leaking.
4. Monitor Oil Quality & Flow
- Oil Analysis: Check for contamination (coolant, dirt, or oxidation).
- Flow Rate: Ensure proper oil circulation (low flow = poor cooling).
- Pressure Drop: Compare inlet/outlet pressure; a significant drop may indicate blockage.
5. Fan & Airflow Maintenance (if applicable)
- Fan Blades: Inspect for damage or imbalance.
- Motor/Bearings: Lubricate or replace if noisy or stiff.
- Shroud & Ducts: Ensure proper airflow direction with no obstructions.
6. Operational Checks
- Temperature Monitoring: Compare oil temps before/after the cooler; abnormal rises indicate issues.
- System Performance: If overheating persists, check thermostat, pump, or bypass valve.
Maintenance Schedule
| Task | Frequency |
| Visual Inspection | Weekly/Daily (harsh environments) |
| External Cleaning | Monthly or as needed (dirty conditions) |
| Internal Flush | Annually or per oil change interval |
| Full System Check | Every 500-1000 operating hours |
- Overheating Oil: Clogged fins, low airflow, or internal blockage.
- Oil Leaks: Damaged seals, loose fittings, or cracks.
- Reduced Cooling Efficiency: Bent fins, fan failure, or degraded oil.
Final Tips
- Always follow the manufacturer’s maintenance guidelines.
- Use compatible cleaning agents to avoid corrosion.
- Keep records of inspections and repairs for predictive maintenance.
By following these steps, you’ll ensure optimal performance and extend the life of your air-cooled oil cooler. Let me know if you need details on specific systems!
