Shell and tube heat exchangers are one of the most common and versatile types of heat exchangers used across various industries. Designed to efficiently transfer heat between two fluids—one flowing inside tubes and the other around them within a shell—they offer a robust solution for high-pressure and high-temperature applications. Their modular design, ease of maintenance, and ability to handle a wide range of fluids make them indispensable in power generation, chemical processing, HVAC, pharmaceuticals, and many other sectors.
Components Breakdown

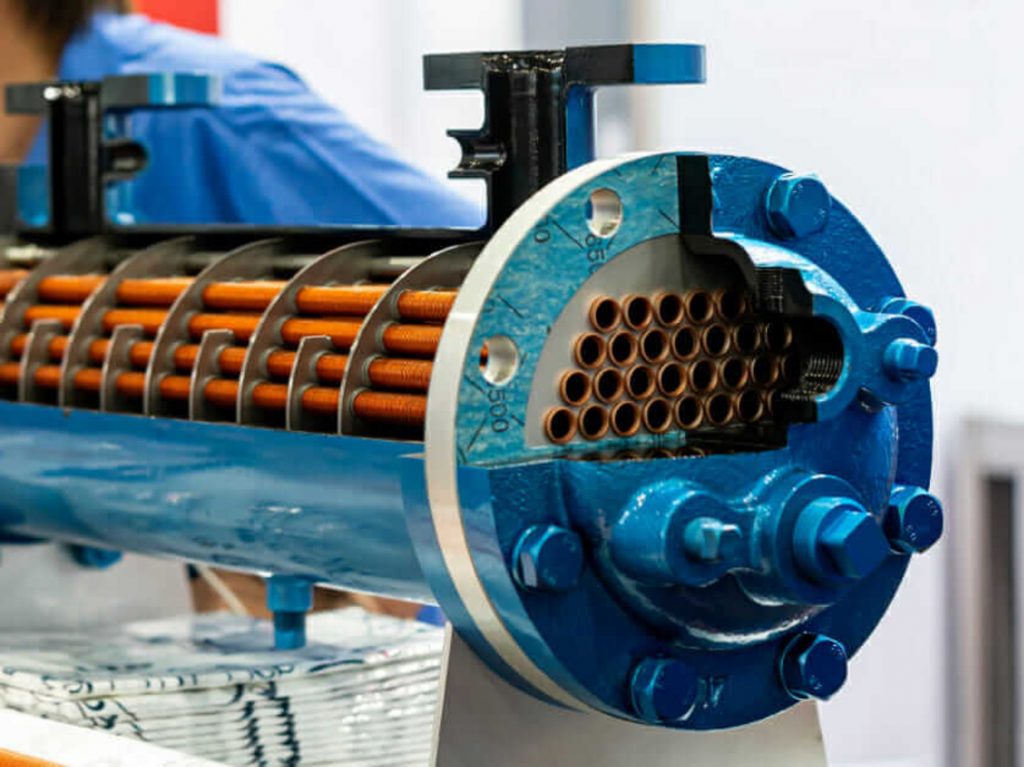

- Tube Bundle
- Contains tubes, tube sheets, tie rods, and baffles.
- Material: Stainless steel, copper, titanium, etc., selected based on fluid properties.
- Shell
- Encases the tube bundle and directs shell-side flow.
- Typically made of carbon steel or stainless steel.
- Front Header (Stationary Head)
- Entry point for the tube-side fluid.
- Can be designed as removable or fixed based on maintenance requirements.
- Rear Header (Return Head or Channel)
- Outlet or return point for the tube-side fluid.
- In some types, it allows return flow for multiple passes.
Working Principle
- Hot and cold fluids flow in separate paths.
- Typically arranged in counter-flow to maximize heat transfer.
- Heat passes from the hot fluid to the tube walls and is absorbed by the cold fluid.
Unique Engineering Benefits
- No Flow Mixing: Fluids remain separate, making it ideal for toxic or reactive fluid applications.
- Segmented Baffle Design: Special baffle arrangements (helical or disc-and-doughnut types) reduce pressure drop and improve flow distribution.
- Zoning Flexibility: Zones can be created to have different flow rates or fluid types in one exchanger.
- Energy Recovery Applications: Used for waste heat recovery in industrial boilers, kilns, and dryers.
- Double Tubesheet Design: Prevents cross-contamination in critical applications like pharmaceuticals and nuclear systems.
- Expandable Layouts: New tube bundles can be added or resized to meet growing process needs.
- Thermosyphon Integration: Can be part of passive cooling systems where no pumps are required.
Customization Options
- Tube Diameter & Thickness: Adjusted for pressure and flow characteristics.
- Material Coating: Anti-corrosion or anti-scaling linings.
- Mounting Style: Horizontal, vertical, skid-mounted, or wall-mounted.
- Tube Arrangement: Triangular, square, or rotated square pitch for flow optimization.
Shell and tube heat exchangers provide an ideal combination of durability, flexibility, and efficiency for heat transfer applications. Their ability to withstand harsh operating conditions, accommodate different materials, and offer easy cleaning and maintenance ensures long-term reliability and performance. Whether for energy recovery, fluid cooling, or chemical processing, shell and tube heat exchangers remain a cornerstone technology that continues to evolve with modern engineering demands.
