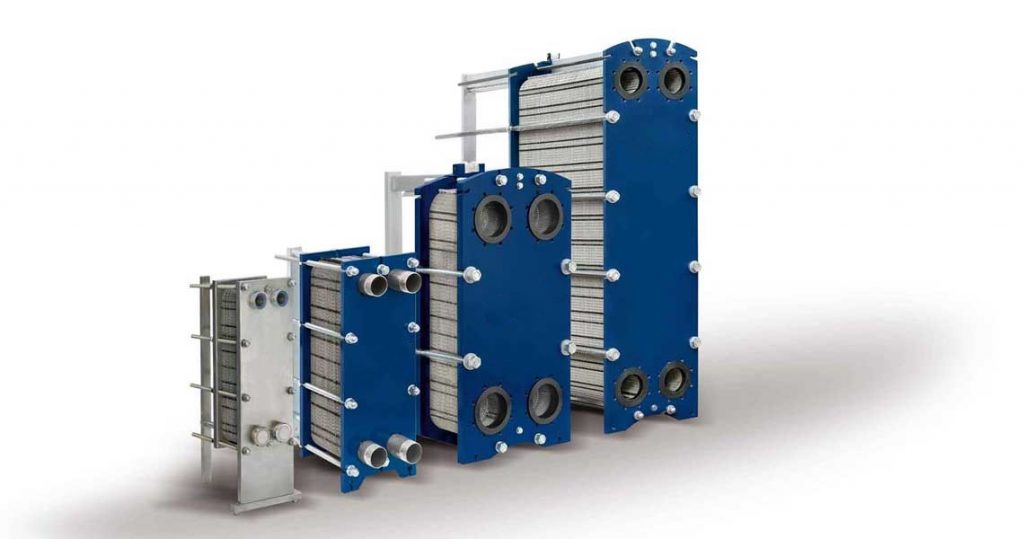

Gasketed Plate Heat Exchangers (GPHEs) are high-efficiency, compact thermal devices used to transfer heat between two fluids without mixing them. Known for their modular design, easy maintenance, and superior heat transfer rates, GPHEs are widely used in HVAC, food & beverage, chemicals, pharmaceuticals, and renewable energy systems.
Their customizable plate arrangement, removable gaskets, and scalable performance make them ideal for both small-scale and heavy-duty industrial processes. This write-up will explore rare insights, advanced design features, and modern applications of these powerful exchangers.
Working Principle of Gasketed Plate Heat Exchangers
A Gasketed Plate Heat Exchanger works based on indirect heat transfer:
- A stack of corrugated plates is held together between a fixed and movable frame.
- Each plate has gaskets that direct the hot and cold fluids into alternate channels.
- Fluids flow in counter-current or co-current directions, transferring heat across the thin metal plate walls.
- The corrugations induce turbulence, increasing the heat transfer coefficient even at low velocities.
Bonus Insight: Turbulent flow reduces fouling, minimizes cleaning frequency, and allows high heat recovery in compact units.
Unique Construction Elements
Plates
- Material: Common options include Stainless Steel (SS304/316), Titanium, Hastelloy, and SMO 254 for aggressive chemicals.
- Thickness: Typically 0.4 to 0.6 mm, but designed to withstand high pressures.
- Corrugation Patterns:
- Chevron or Herringbone patterns provide strength and turbulence.
- Fishbone, off-set wave, or wide-gap patterns are used for fibrous or viscous fluids.
Gaskets
- Sealing Materials: EPDM, Nitrile (NBR), Viton®, Silicone, or PTFE.
- Function: Prevent leakage and control flow path.
- Special Types:
- Double-seal gaskets with leak-detection grooves.
- Clip-on gaskets for tool-free maintenance.
- Heat-cured gaskets for long service in high-temperature applications.
Frame & Tie Bars
- Made from carbon steel or stainless steel.
- The movable pressure plate allows tightening or loosening for adding/removing plates.
Specialized Design Variants
Semi-Welded Plate Heat Exchangers
- One side welded; one side gasketed.
- Ideal for toxic, volatile, or high-pressure fluids (like ammonia).
- Reduces gasket exposure to aggressive media.
Wide Gap Plate Exchangers
- Plates have larger spacing.
- Used in fibrous, dirty, or viscous fluid applications like fruit pulps or wastewater.
Free-Flow Plate Exchangers
- Plates have no contact points, allowing debris or fibers to pass.
- Preferred in paper mills, pulp, or juice processing.
Multi-Pass & Multi-Circuit Designs
- Heat exchangers can be built for multiple passes on one or both fluid sides.
- Some designs allow simultaneous heat exchange for different process streams.
Maintenance & Inspection Advantages
- Tool-less plate removal with clip gaskets.
- Laser-etched QR codes on plates for asset tracking and service history.
- CIP integration for automatic chemical cleaning.
- Visual leak indicators in gaskets.
- Replacement of individual plates without disturbing the entire stack.
Limitations to Consider
- Not ideal for very high-pressure (>30 bar) or extremely viscous fluids unless specially designed.
- Gasket degradation over time in oxidizing, acidic, or high-temperature environments.
- Requires careful gasket material selection based on fluid chemistry.
Gasketed Plate Heat Exchangers (GPHEs) offer unmatched thermal efficiency, ease of maintenance, and scalability for modern industries. Their innovative plate and gasket technologies, coupled with application-specific customization, make them ideal for both routine heating/cooling duties and specialized industrial challenges. With evolving demands in energy efficiency, sustainability, and process optimization, GPHEs continue to be a backbone of heat transfer technology.
