In industrial heat exchange systems, coil design plays a vital role in efficiency, maintenance, and durability. Drainable coil design is a specialized approach that allows complete drainage of fluid from the coil during shutdown or maintenance. This feature is particularly important in applications where freezing, corrosion, or contamination risks exist. By enabling thorough drainage, the design minimizes damage, improves hygiene, and extends equipment life.
Why Drainable Coil Design Matters
In many heating and cooling systems, residual fluid inside the coil can cause several problems. For example:
- Freezing risk during low ambient conditions
- Bacterial growth in stagnant water
- Corrosion due to trapped moisture
- Performance decline from blockages or deposits
Drainable coil design addresses these challenges by allowing gravity-assisted fluid removal, making it essential for applications in refrigeration, HVAC, pharmaceuticals, food processing, and chemical industries.

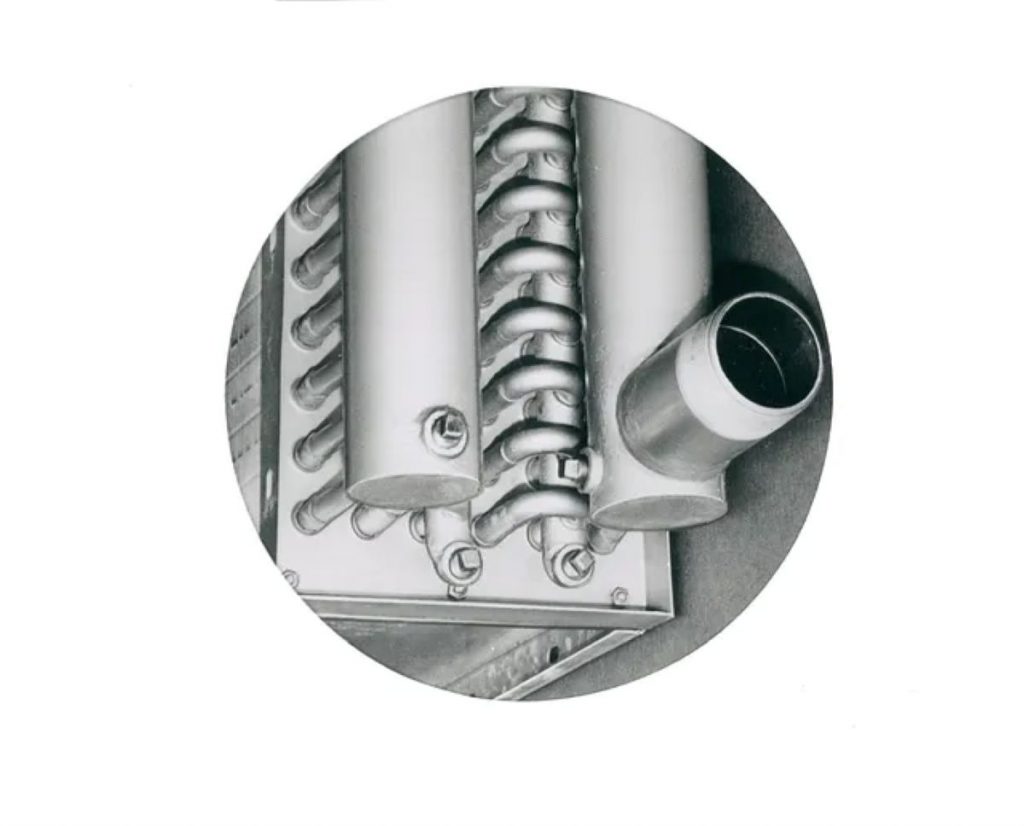

Key Features of Drainable Coil Design
- Low-Point Drain Connections – Strategically placed outlets ensure complete fluid removal without manual intervention.
- Angled Tube Arrangement – Tubes are sloped to guide liquid toward the drain points.
- Accessible Headers – Allows for easy inspection and maintenance of the drainage path.
- Non-Trapping Geometry – Avoids areas where fluid can collect and stagnate.
- Material Selection – Corrosion-resistant metals like stainless steel, copper, or cupronickel improve longevity.
Benefits of Drainable Coil Design
- Freeze Protection – Prevents costly coil damage in cold environments.
- Improved Hygiene – Essential in food and pharma industries where cleanliness is critical.
- Reduced Maintenance Costs – Less corrosion and scaling mean fewer repairs.
- Longer Equipment Life – Eliminates standing water that accelerates wear and tear.
- Operational Efficiency – Ensures optimal heat transfer performance during each cycle.
Applications of Drainable Coil Design
- Cold Storage and Refrigeration Plants
- Industrial HVAC Systems
- Pharmaceutical Clean Rooms
- Food & Beverage Processing Facilities
- Marine and Offshore Cooling Systems
Best Practices for Implementing Drainable Coil Design
- Position Coils for Gravity Drainage – Avoid flat installations that trap fluid.
- Install Adequate Drain Valves – Use high-quality valves for quick drainage.
- Regular Inspection – Ensure drain points are clear of blockages.
- Integrate with System Shutdown Protocols – Automatically drain coils when the system is not in use.
- Material Compatibility – Match coil materials to process fluids for maximum durability.
Drainable coil design is a smart, preventive approach for heat exchanger systems where freezing, contamination, or corrosion can cause operational and financial setbacks. By ensuring complete fluid evacuation, it enhances safety, efficiency, and equipment lifespan. For industries operating in low-temperature or hygiene-sensitive environments, adopting drainable coil technology is a cost-effective way to protect both your process and your investment.
