Compact heat exchangers (CHEs) are specialized thermal devices that provide high heat transfer efficiency within minimal space and weight. These heat exchangers are widely utilized where conventional systems like shell and tube or plate exchangers fall short in size-sensitive or performance-critical environments.
Whether it’s for a jet engine intercooler, electric vehicle battery cooling, or high-efficiency HVAC systems, CHEs are a modern solution for today’s energy challenges. This article explores their design, working, types, materials, applications, and future technologies in an expansive and structured way.

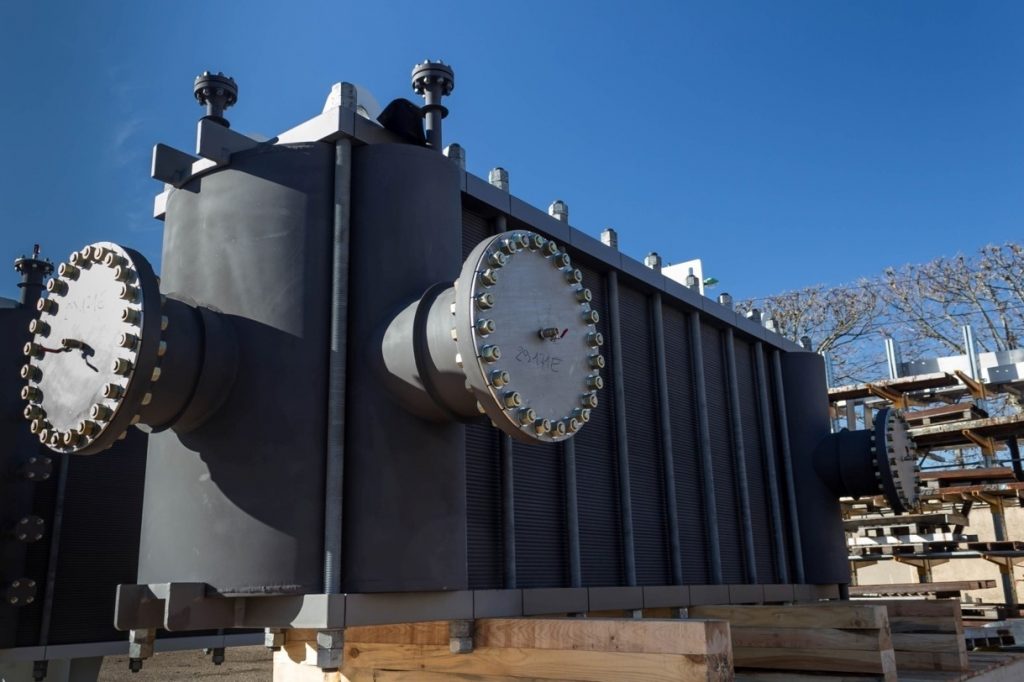

What Is a Compact Heat Exchanger?
A Compact Heat Exchanger is defined as a heat exchanger having a surface area density (heat transfer area per unit volume) greater than 700 m²/m³. This means it provides a large heat transfer area in a very small volume.
Key Characteristics
- Highly efficient heat transfer (often 90%+ effectiveness)
- Low weight and small size
- Minimal fluid hold-up volume
- Close temperature approach (<3°C possible)
- Versatile geometry and material options
These features make CHEs ideal for industries demanding weight savings, fast thermal response, high-pressure tolerance, or extremely limited installation space.
How Compact Heat Exchangers Work
Compact Heat Exchangers work by forcing two fluids (hot and cold) to flow in closely packed channels or passages—often with complex geometries that induce turbulence and enhance heat transfer.
Working Principle
- Fluids pass through alternating channels with thin metal walls separating them.
- The channels are designed to generate high surface contact and turbulent flow.
- Heat transfers rapidly across the walls from one fluid to the other.
Flow Arrangements
- Counterflow – Maximum efficiency, common in most CHEs
- Crossflow – Used when one fluid is air or gas
- Parallel flow – Rare in CHEs, used in specific designs like spiral types
Types of Compact Heat Exchangers
Compact heat exchangers come in a wide range of geometries and build types, each tailored to specific industries and operating conditions.
Printed Circuit Heat Exchanger (PCHE)
- Etched microchannels in metal plates
- Diffusion bonded, no gaskets or welds
- Withstands up to 600 bar and 900°C
- Used in hydrogen plants, offshore gas processing, small modular nuclear reactors (SMRs)
Microchannel Heat Exchanger (MCHE)
- Aluminum construction with tiny flow passages
- Highly efficient and extremely light
- Used in HVAC, automotive radiators, electronics cooling
Spiral Heat Exchanger
- Two metal plates spirally wound to form flow channels
- Suitable for viscous or fouling fluids
- Common in sludge treatment, pulp processing, chemical reactors
Limitations to Be Aware Of
Even though CHEs are powerful, they have a few drawbacks:
- Cleaning is difficult: Due to narrow channels, mechanical cleaning is often impossible.
- Initial cost is high: Advanced materials and manufacturing (e.g., PCHEs) can be expensive.
- Not suitable for dirty fluids: Viscous slurries or fluids with suspended solids may clog.
- Customization limitations: Once manufactured, most designs are not modifiable.
Emerging Technologies in Compact Heat Exchangers
Smart Heat Exchangers
- Integration of IoT sensors for temperature, pressure, fouling detection.
- Real-time performance tracking and predictive maintenance.
3D-Printed Heat Exchangers
- Customized internal geometries for maximum turbulence and flow optimization.
- Rapid prototyping for aerospace and defense R&D.
Graphene-Based Coatings
- Superconductive and corrosion-resistant layers to enhance thermal efficiency.
Bi-Metallic & Functionally Graded Materials
- Allow one side of the exchanger to handle corrosive fluid, and another to handle high pressure.
Compact heat exchangers (CHEs) are rapidly becoming the go-to solution for modern industries seeking high-performance thermal management in minimal space. Their ability to deliver maximum heat transfer efficiency, handle extreme temperatures and pressures, and integrate into space-restricted systems makes them invaluable in sectors such as aerospace, automotive, pharmaceuticals, renewable energy, defense, and high-performance electronics.
