                             Water Cooled Scroll Chiller

Introduction

The Environmental friendly Water cooled Scroll Chiller are easy to install and can work perfectly in extreme tropical weather conditions. Therefore, These scroll chillers are designed, manufactured and tested as per approved international parameters.. Installed equipment are operation friendly and are backed by the competent engineering team to realize the advantage while being in operation.

 Features of Water Cooled Scroll Chiller:

  • Reliable and energy:-  efficient scroll compressors of European origin
  • Environment friendly:-  refrigerant R-407C / R-410A/ R-134A, available
  • Separate and individual:-  refrigeration circuits with each compressor
  • Totally skid mounted :- unit with single and multiple refrigeration circuits including fluid pump and storage tank
  • Electronic expansion:-  valves for larger capacities, for energy efficiency and precise temperature control
  • Factory made and tested:-  tube-in-tube as well as shell and tube evaporators, with high-flow high-pressure design, for specific process applications
  • High fouling factors:-  increased condensing area, extra tube thickness and high-flow design, for highest energy efficiency, higher operational reliability and easier maintenance
  • Fully automatic PLC:-  based units with remote operation and data logging facilities, available
  • Automatic, stepped:-  capacity control, through multiple compressor operation, from 33% to 100%

Types of Compressor Models

Its  consists of 2 types of compressor models ..

They are followed by,

  1.  Single Compressor Model  and ,
  2. Multiple Compressor Model

1. Single Compressor Model:

Single Compressor is designed following international standards. It is manufactured using renowned scroll compressors make available from da nfoss – maneurop and Copeland. The design of this is fully microprocessor based suitable for cooling applications ranging from (+) 20°C up to (-) 15°C and for lower temperatures of up to (-) 50°C.

Operating voltages

  • 380/400 Volt AC/ 50 Hz
  • 460 Volt AC/ 50 Hz
  • 380 Volt AC/ 60 Hz
  • 460 Volt AC/ 60 Hz

Design of Equipment

  • evaporating temperature: (+) 5°C
  •  condensing temperature: (+) 40°C
  • Connected power: 415 Volt AC +/- 10% / 50Hz / 3 Phase + neutral

Features

  • Ergonomic design
  • Low input KW/TR
  • Sturdy construction
  • Heat exchanger designed as per TElvlA/ASME/SEC VIII, DM, 2001
  • Latest technology
  • MCS microprocessor/PLC based/ electro mechanical
  • CFC free refrigerant
  • Liquid injection for maximum compressor life
  • Energy efficient
  • Easy-to-use

2. Multiple Compressor Model:

Proffering a gamut of  Multiple Compressor, our professional team has designed it innovatively. This liquid chiller is known for its comfort handling and process-cooling applications. It is available to our clients fully as a factory-assembled liquid chiller. Equipped with inimitable features like easy installation using wire and controllers, it offers maximum working efficiency.

Features

  • Modular design
  • CFC free refrigerants
  • Low input KW/TR required
  • Robust construction
  • Modern technologies
  • Efficient working
  • Designed as per TElvlA/ASME/SEC VIII, DM, 2001
  • Comprises MCS microprocessor
  • Equipped with PLC and electro mechanical
  • Includes liquid injections

Images

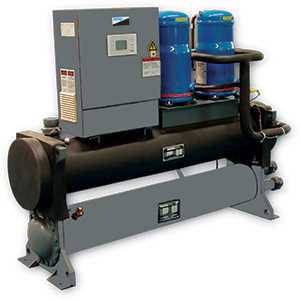

Water Cooled Scroll Chiller

Image result for water cooled scroll  chiller

Single Compressor Model

Image result for water cooled scroll  chiller for single compressor

Multiple Compressor Model

Image result for water cooled scroll  chiller for Multiple compressor
